Model :TL-A1/TL-A3/TL-A4S (Supports LightBurn software connection )

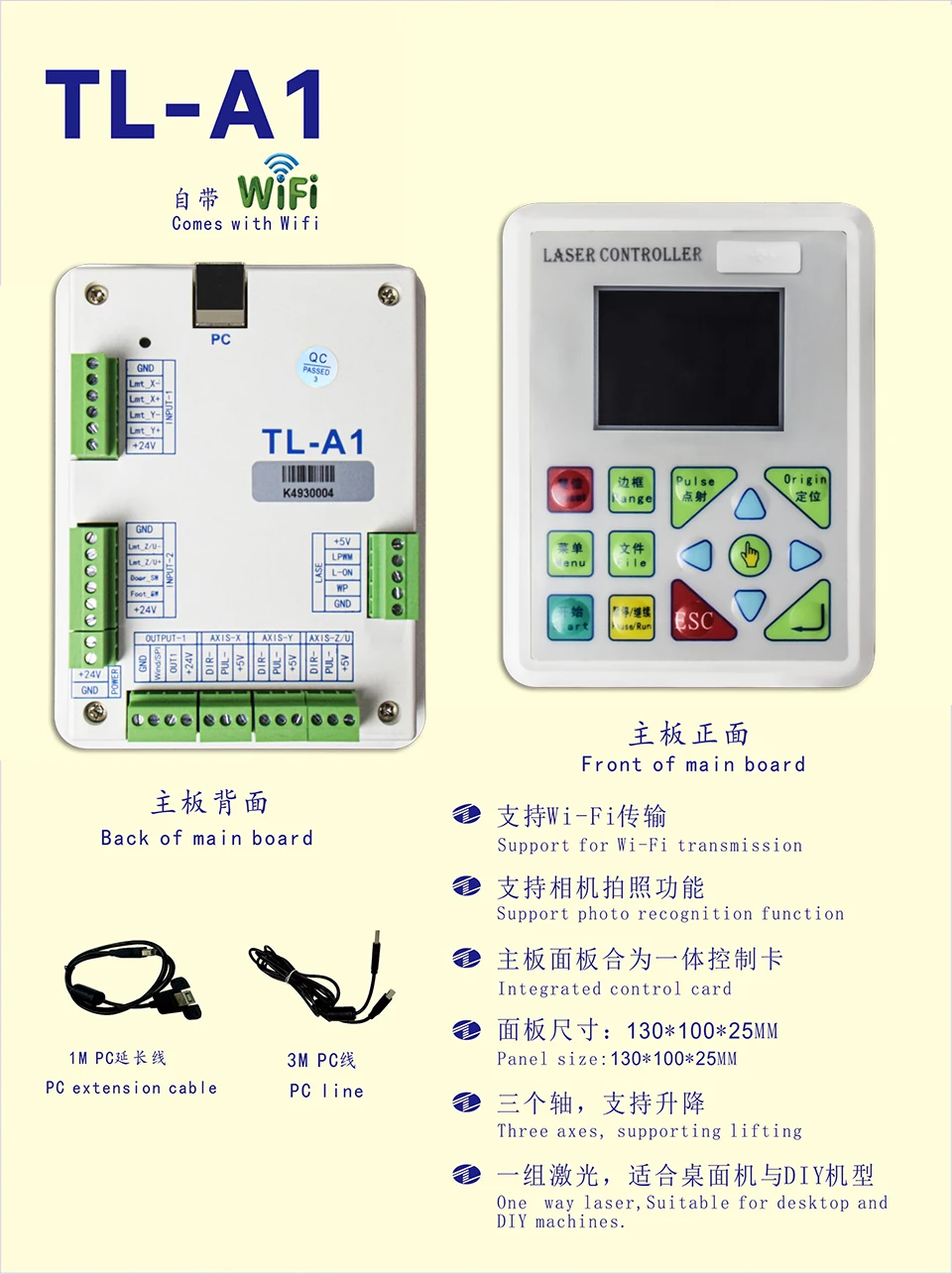

TL-A1:

1. DC24V/2A power supply

2. Adopting a 32-bit high-speed floating point embedded ARM architecture, 128MB Flash, 512K RAM, 2-way universal output, 9-way input, TTL level.

3. Equipped with a 2.4 inch, 320 * 240 resolution LCD display screen.

4. It can achieve 3-axis motor control (X, Y for planar motion, Z for rotating knife lifting, U for feeding or platform lifting, with Z/U multiplexing ports), and the motor axis pulse frequency can reach up to 166KHZ

5. Adopting a 7-segment S-shaped acceleration and deceleration curve and adaptive speed planning algorithm, while supporting one click setting of speed parameters and small circle speed limit, different cutting parameters can be selected for different graphics, and reverse clearance compensation is supported.

6. Support 1-way laser control, TTL level, laser control output voltage 0-5V adjustable, PWM output 1K-100K adjustable, duty cycle 0-100% adjustable.

7. Support USB2.0 interface, support computer USB communication, and support USB drive for reading and writing files.

8. Supports real-time clock and machine lock functions.

9. Support rotary knife cutting function, with mark positioning cutting function, rotary knife height compensation, and material pressing rod control.

10. Support trajectory preview, power off engraving, real-time correction of light intensity and speed during work, rotating engraving, dual platform switching, segmented feeding, pressing feeding, automatic blowing, automatic focusing, foot switch, safety protection, firmware upgrade, processing information statistics, and other functions.

11. Support multiple languages such as Simplified Chinese, English, Traditional Chinese, Korean, Russian, Italian, Spanish, Portuguese, Vietnamese, etc.

TL-A1 Controller Panel have changed into Blue color , if mind , pls contact with us first !

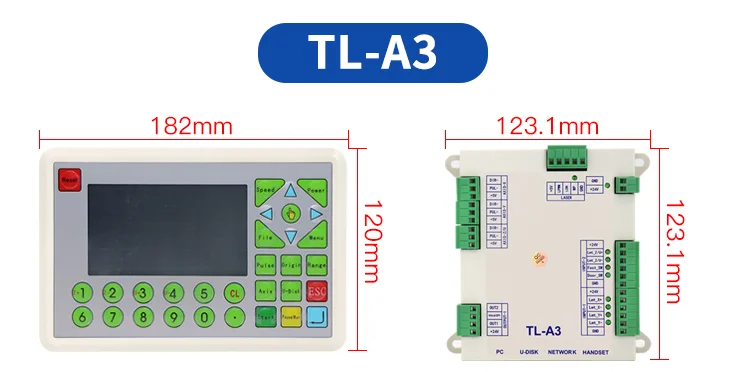

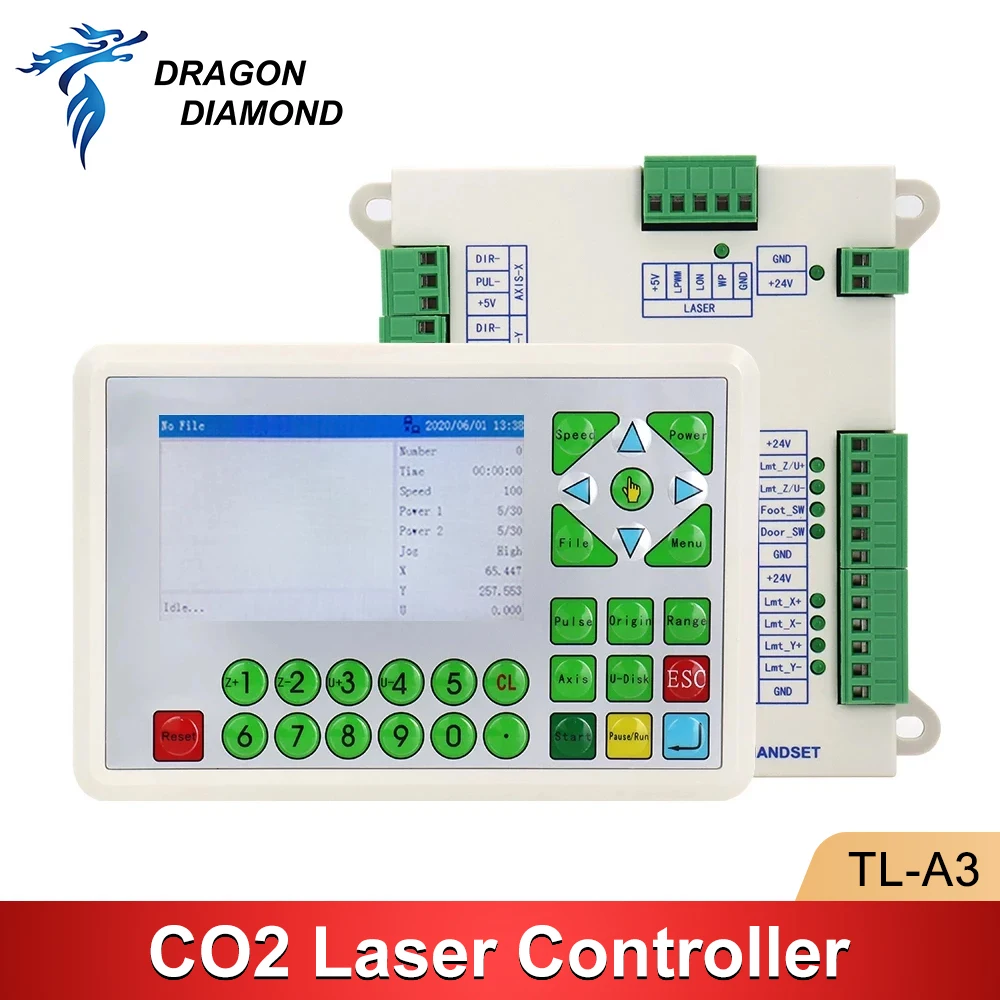

TL-A3 :

1. DC24V/2A power supply

2. Adopting a 32-bit high-speed floating point embedded ARM architecture, 128MB Flash, 512K RAM, 2-way universal output, 9-way input, TTL level.

3. Equipped with a 4.3 inch, 480 * 272 resolution LCD display screen.

4. It can achieve 3-axis motor control (X, Y for planar motion, Z for rotating knife lifting, U for feeding or platform lifting, with Z/U multiplexing ports), and the motor axis pulse frequency can reach up to 166KHZ

5. Adopting a 7-segment S-shaped acceleration and deceleration curve and adaptive speed planning algorithm, while supporting one click setting of speed parameters and small circle speed limit, different cutting parameters can be selected for different graphics, and reverse clearance compensation is supported.

6. Support 1-way laser control, TTL level, laser control output voltage 0-5V adjustable, PWM output 1K-100K adjustable, duty cycle 0-100% adjustable.

7. Support USB2.0 interface, support computer USB communication, and support USB drive for reading and writing files.

8. Supports 100Mbps network communication.

9. Supports real-time clock and machine lock functions.

10. Support rotary knife cutting function, with mark positioning cutting function, rotary knife height compensation, and material pressing rod control.

11. Support trajectory preview, power off engraving, real-time correction of light intensity and speed during work, rotating engraving, dual platform switching, segmented feeding, pressing feeding, automatic blowing, automatic focusing, foot switch, safety protection, firmware upgrade, processing information statistics, and other functions.

12. Support multiple languages such as Simplified Chinese, English, Traditional Chinese, Korean, Russian, Italian, Spanish, Portuguese, Vietnamese, etc.

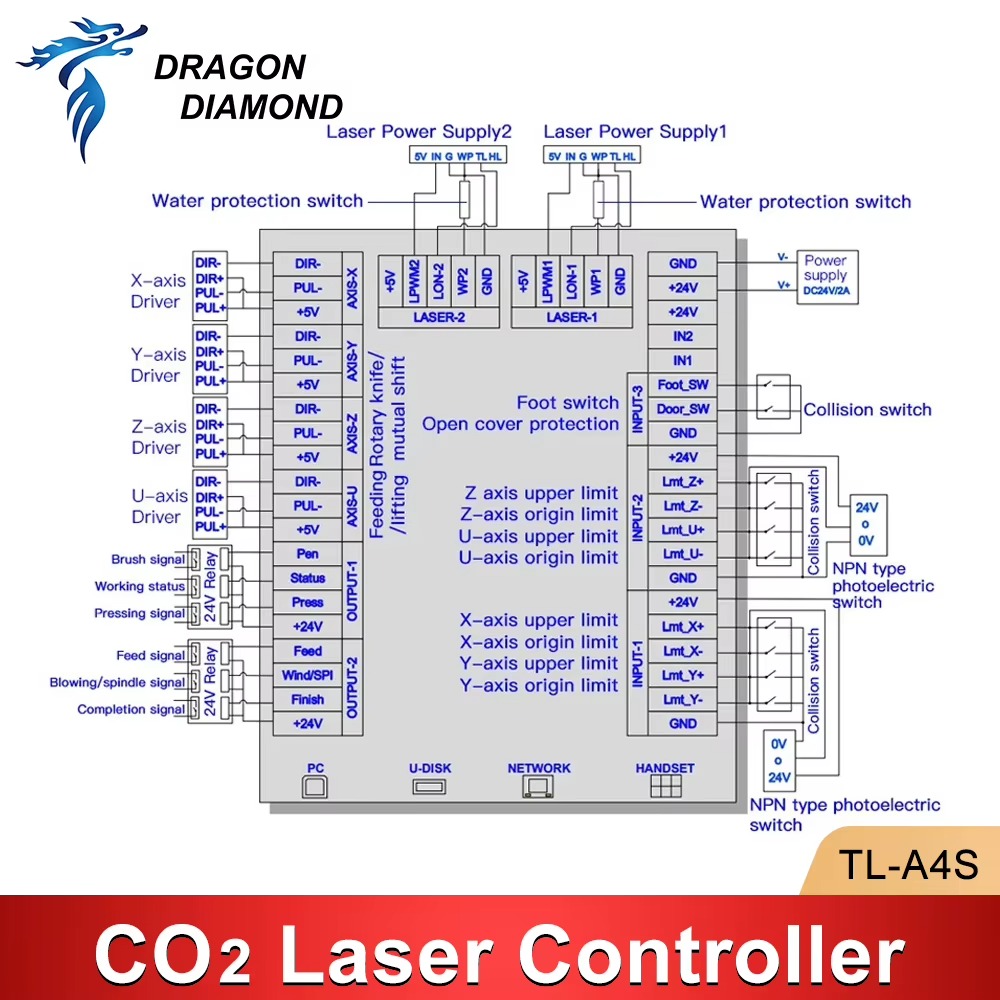

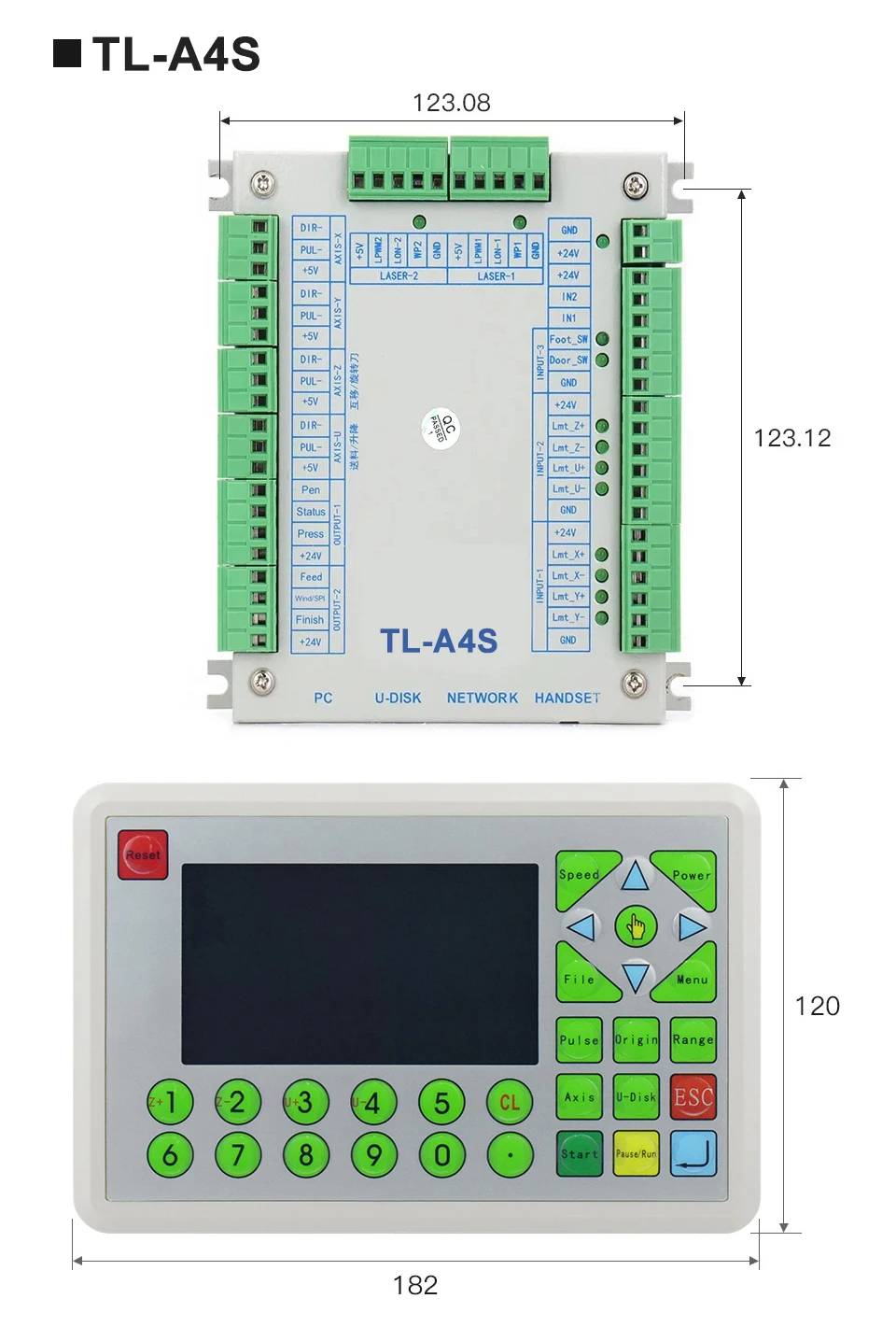

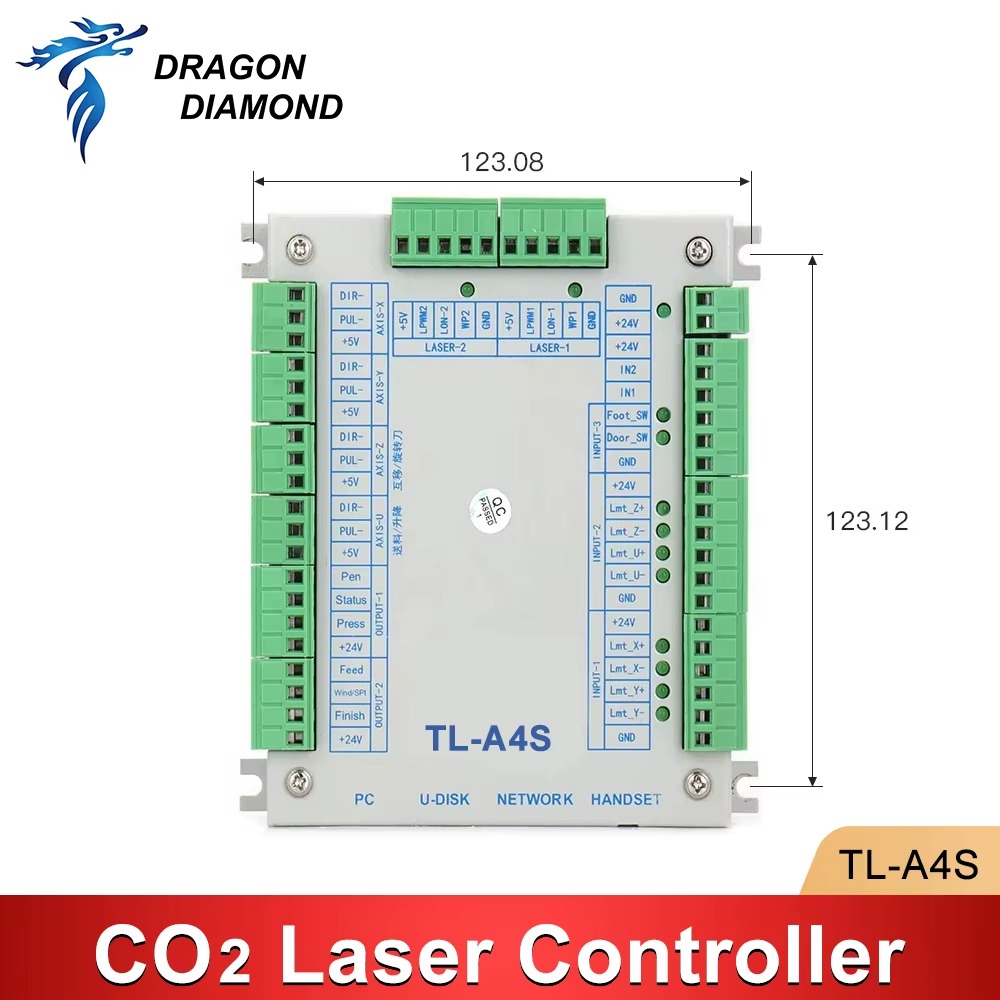

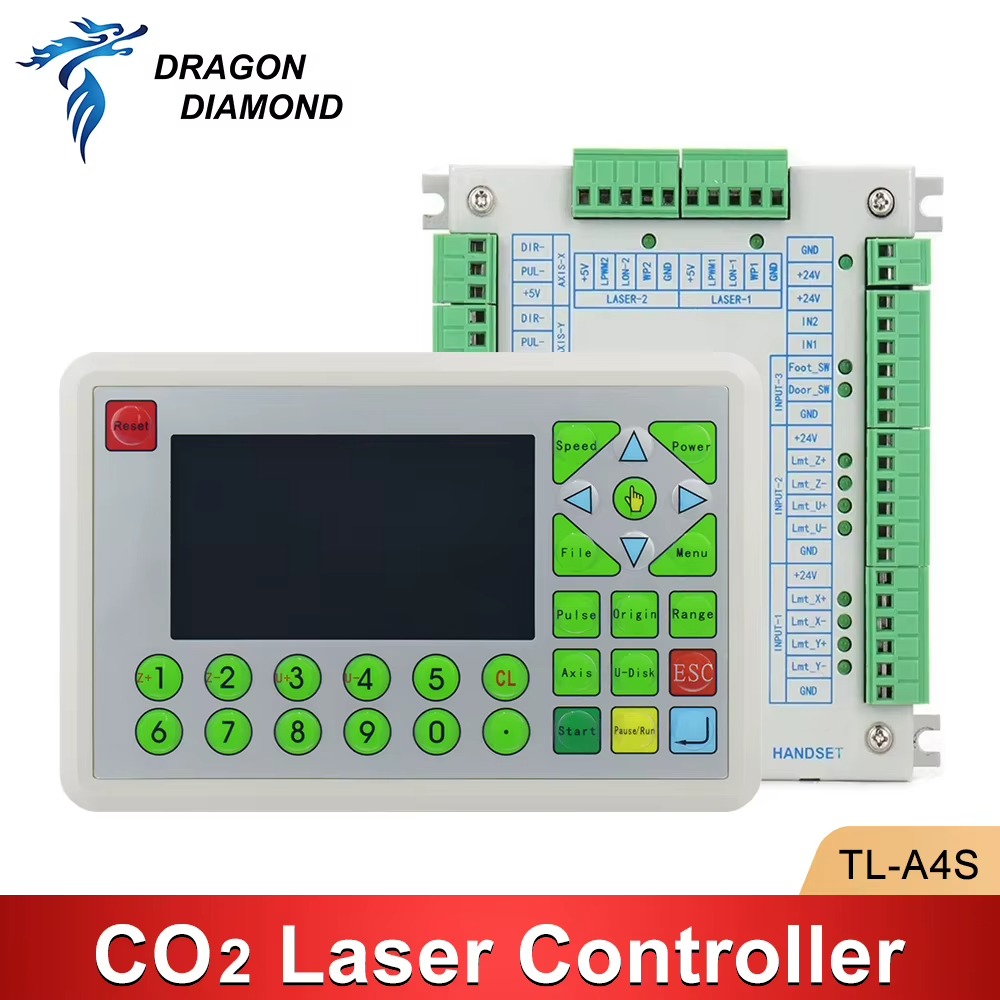

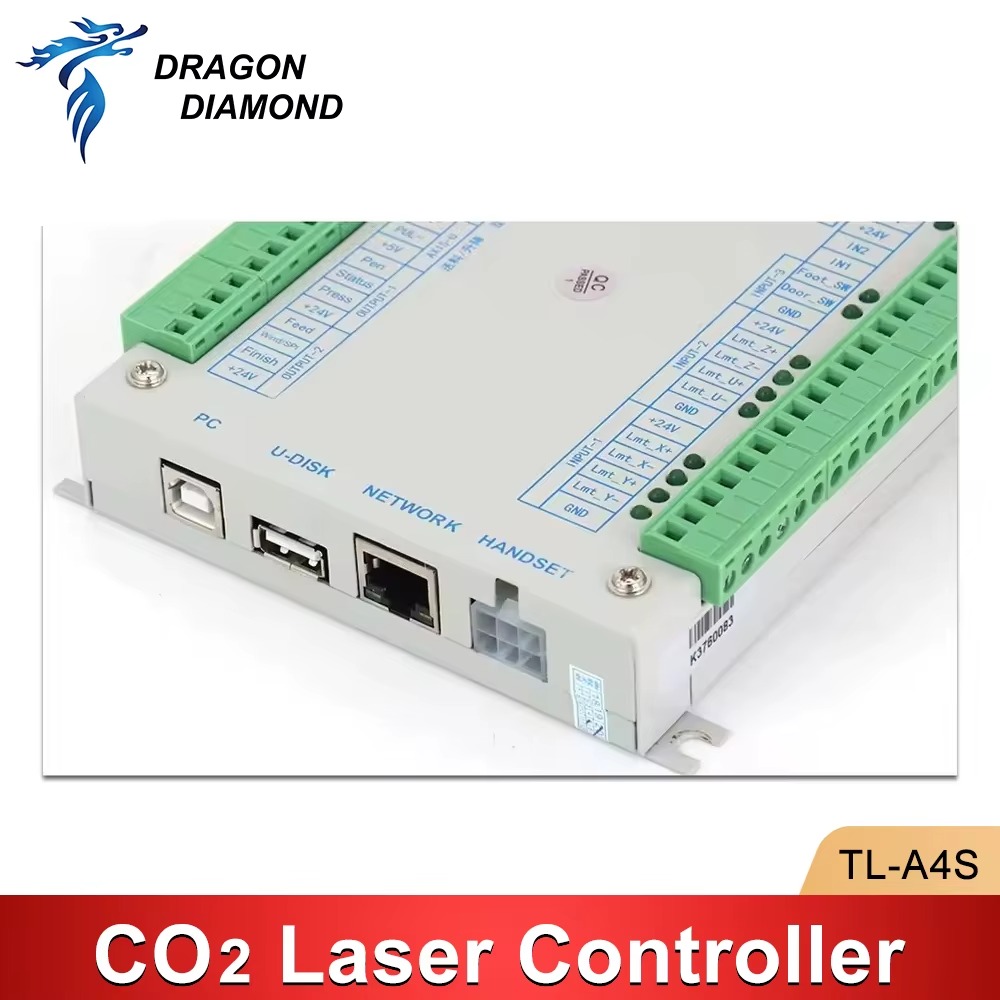

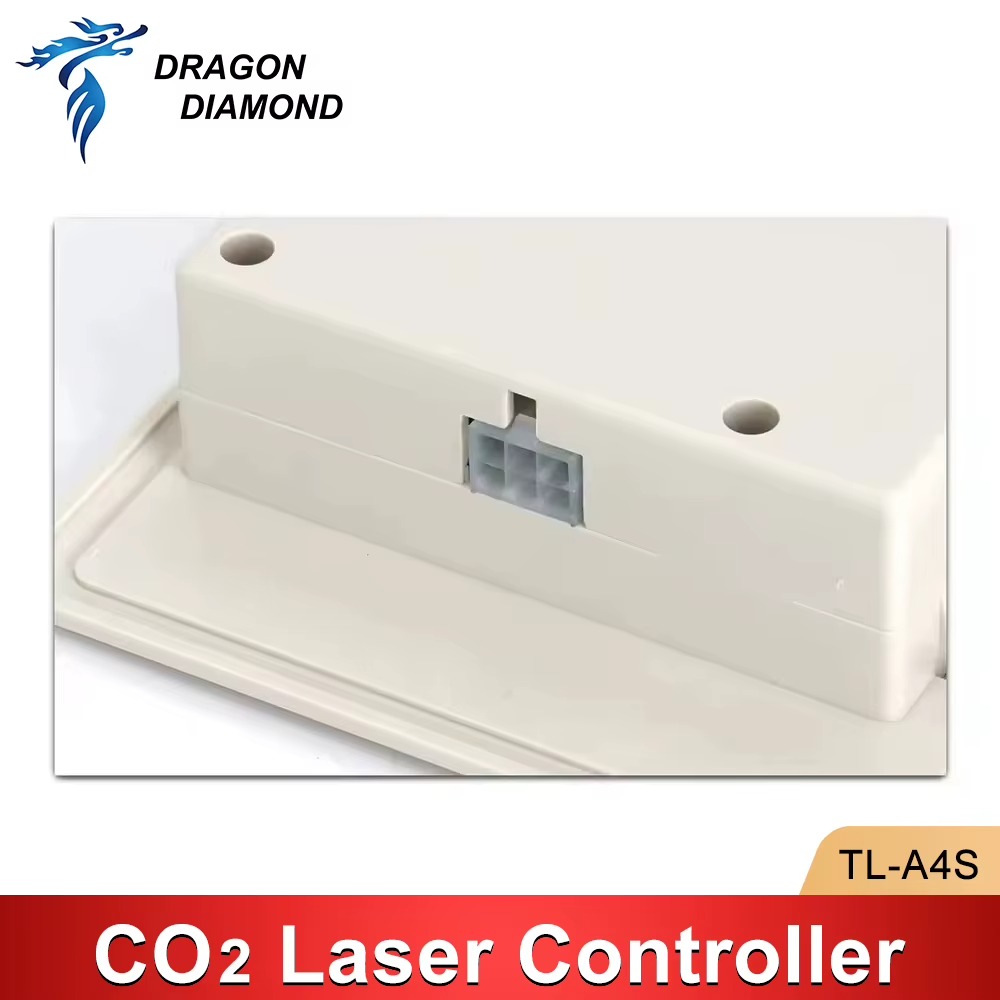

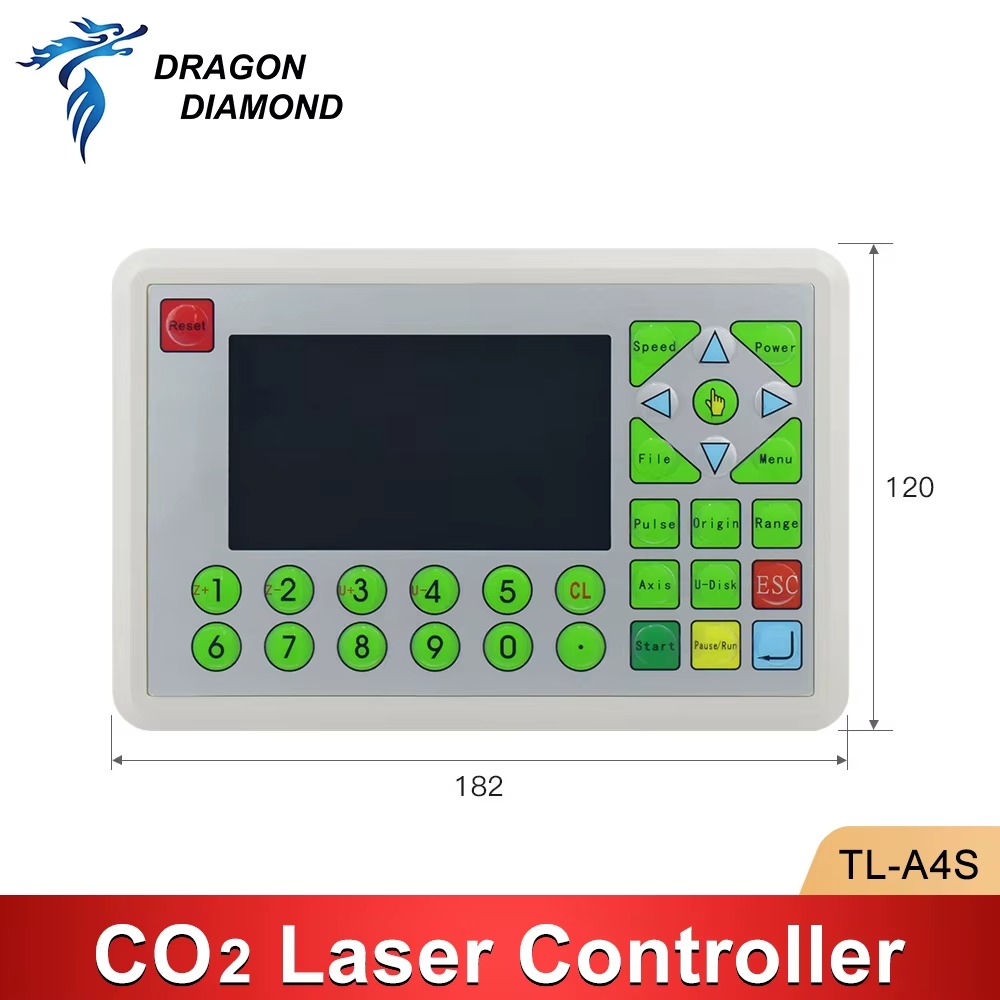

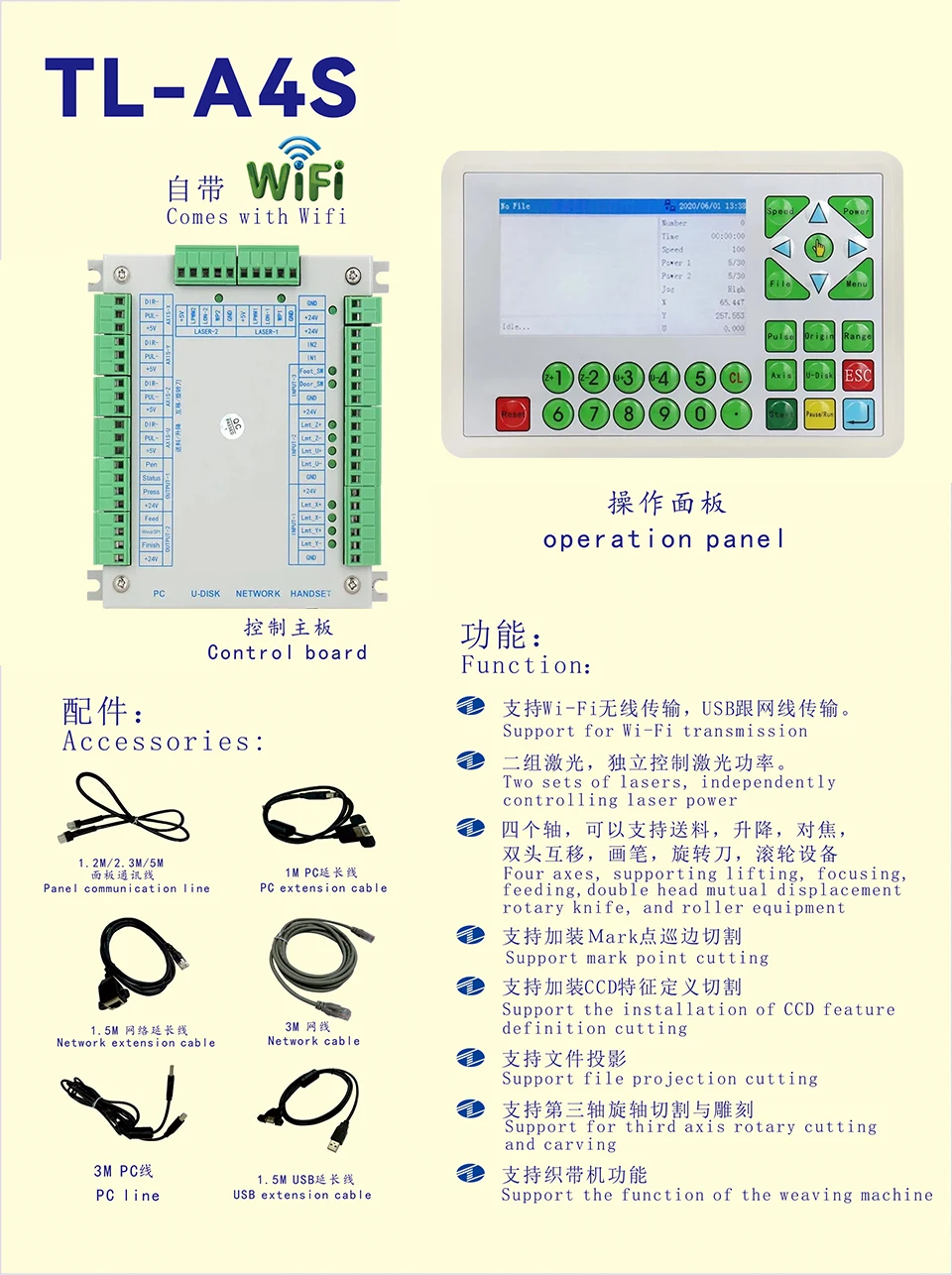

TL-A4S :

1. DC24V/2A power supply

2. Adopting a 32-bit high-speed floating point embedded ARM architecture, 128MB Flash, 512K RAM, 2-way universal output, 9-way input, TTL level.

3. Equipped with a 4.3 inch, 480 * 272 resolution LCD display screen.

4. It can achieve 4-axis motor control (X, Y for planar motion, Z for rotating knife lifting, U for feeding or platform lifting, with Z/U multiplexing ports), and the motor axis pulse frequency can reach up to 166KHZ

5. Adopting a 7-segment S-shaped acceleration and deceleration curve and adaptive speed planning algorithm, while supporting one click setting of speed parameters and small circle speed limit, different cutting parameters can be selected for different graphics, and reverse clearance compensation is supported.

6. Support 1-way laser control, TTL level, laser control output voltage 0-5V adjustable, PWM output 1K-100K adjustable, duty cycle 0-100% adjustable.

7. Support USB2.0 interface, support computer USB communication, and support USB drive for reading and writing files.

8. Supports 100Mbps network communication.

9. Supports real-time clock and machine lock functions.

10. Supports dual head mutual movement models, including single belt dual head and dual belt dual head models.

11. Support rotary knife cutting function, with mark positioning cutting function, rotary knife height compensation, and material pressing rod control.

12. Support trajectory preview, power off engraving, real-time correction of light intensity and speed during work, rotating engraving, dual platform switching, segmented feeding, pressing feeding, automatic blowing, automatic focusing, foot switch, safety protection, firmware upgrade, processing information statistics, and other functions.

13. Support multiple languages such as Simplified Chinese, English, Traditional Chinese, Korean, Russian, Italian, Spanish, Portuguese, Vietnamese, etc.

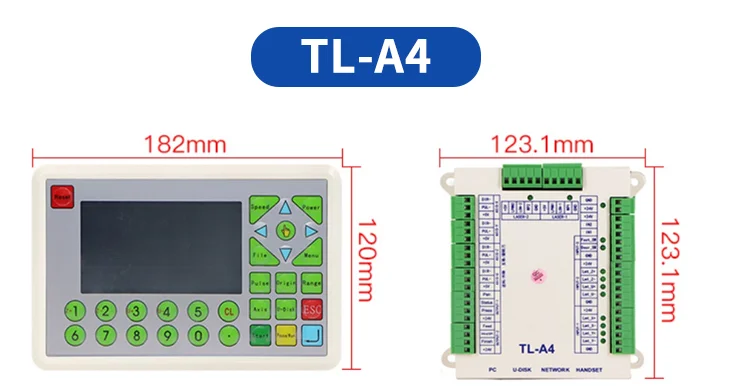

Difference Between A1 and A4 :
