Machine CNC Router 1325 - Bois et Aluminium Machine 1325 3d CNC Router With 4 Axis 1325BR 4 Axis CNC Router

0 درهم

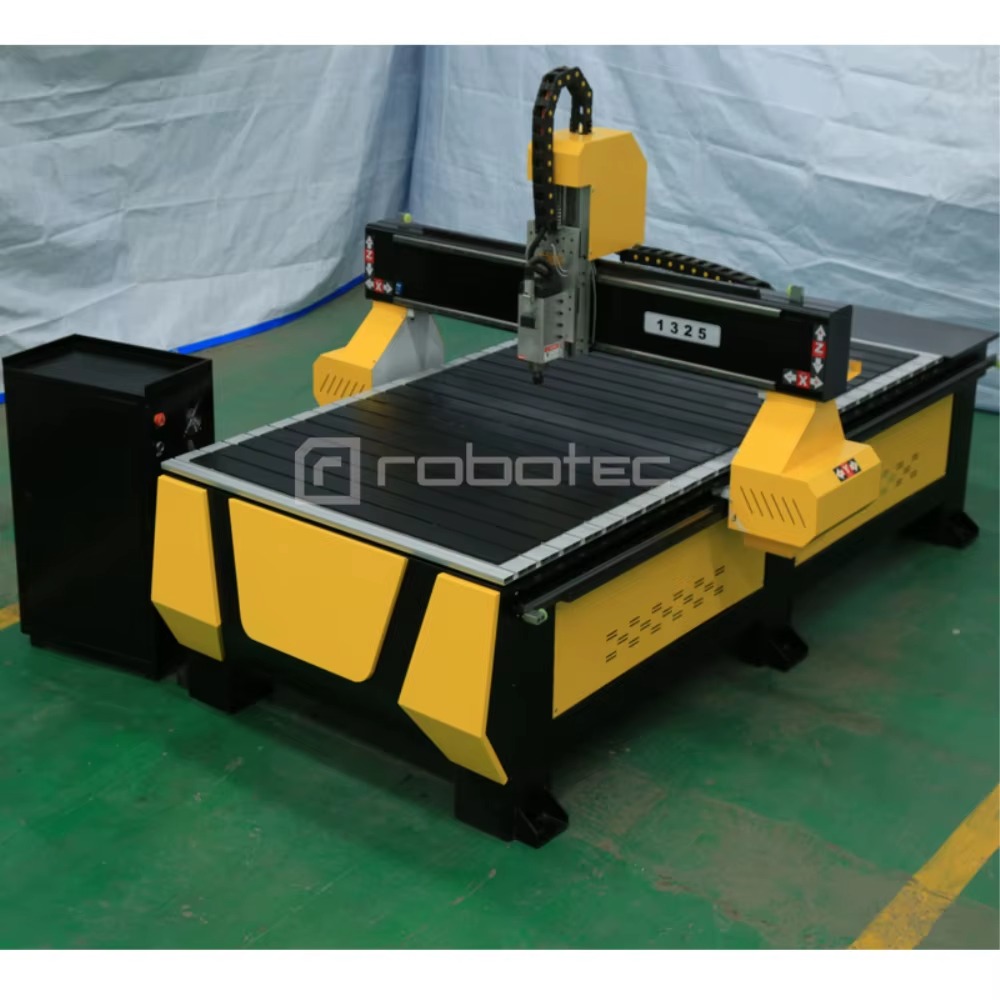

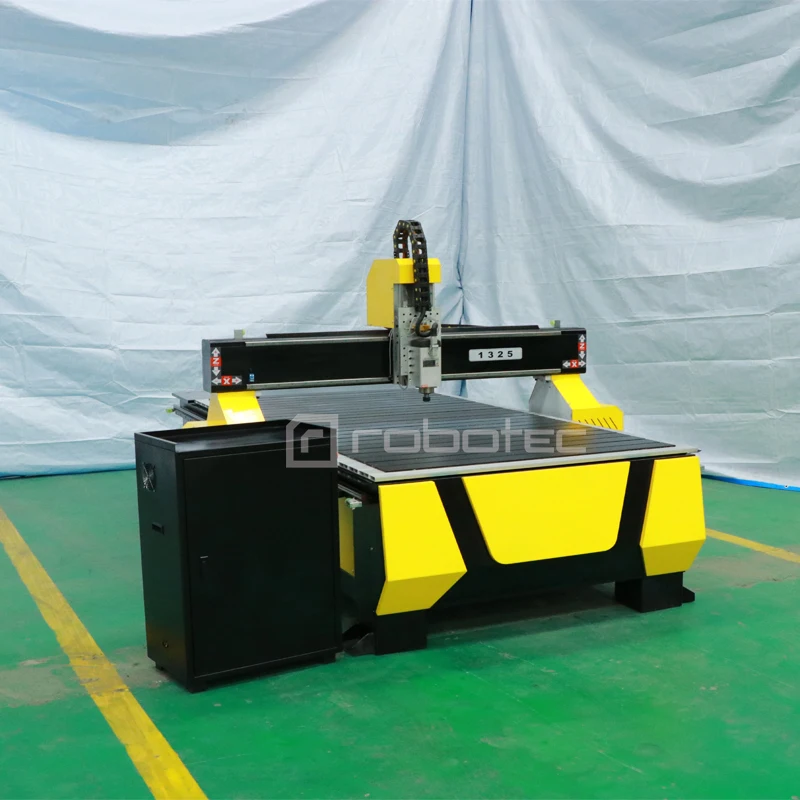

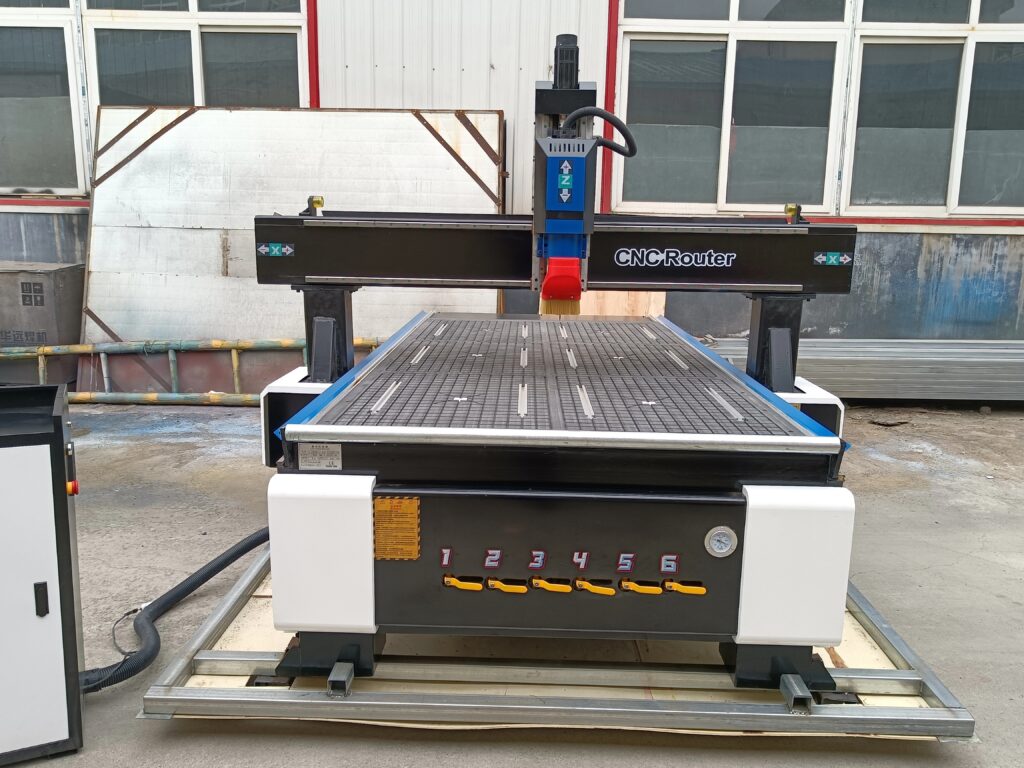

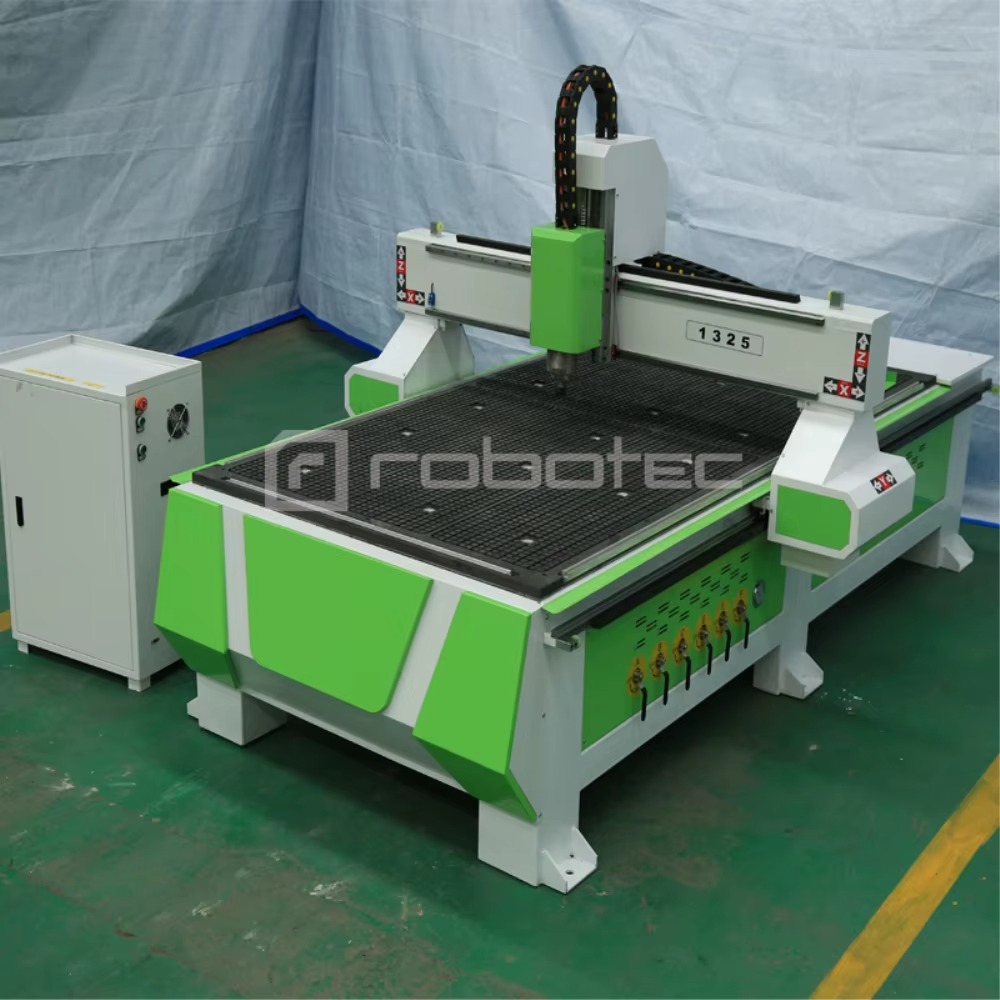

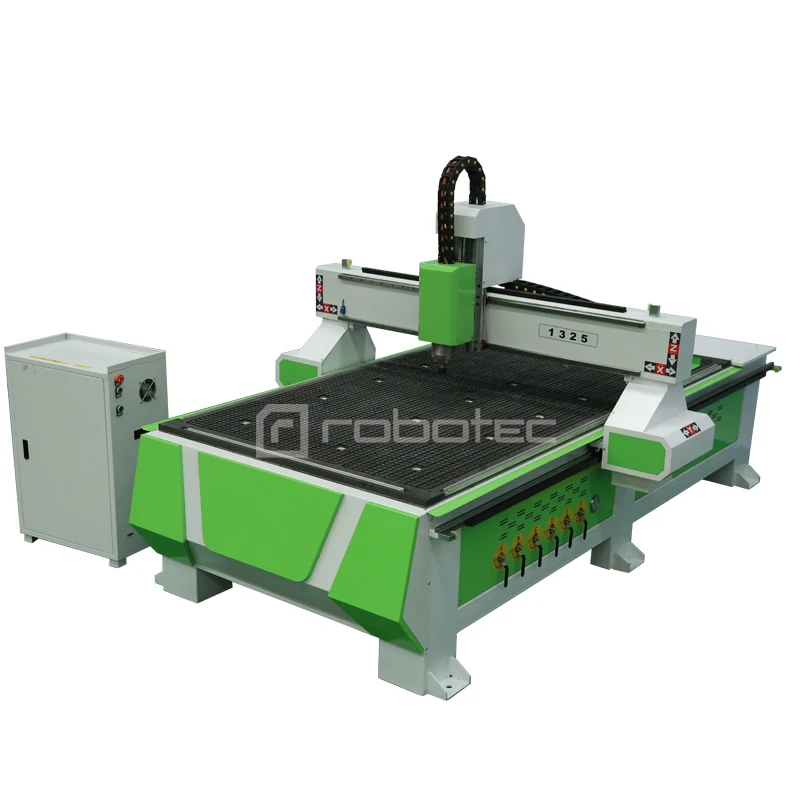

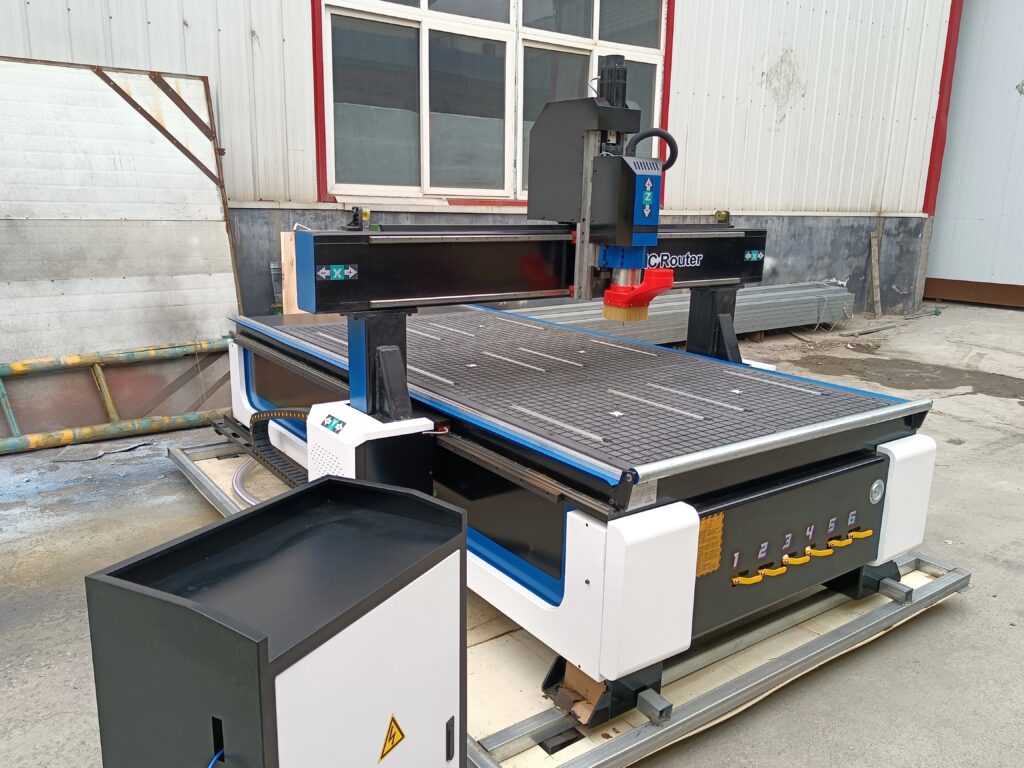

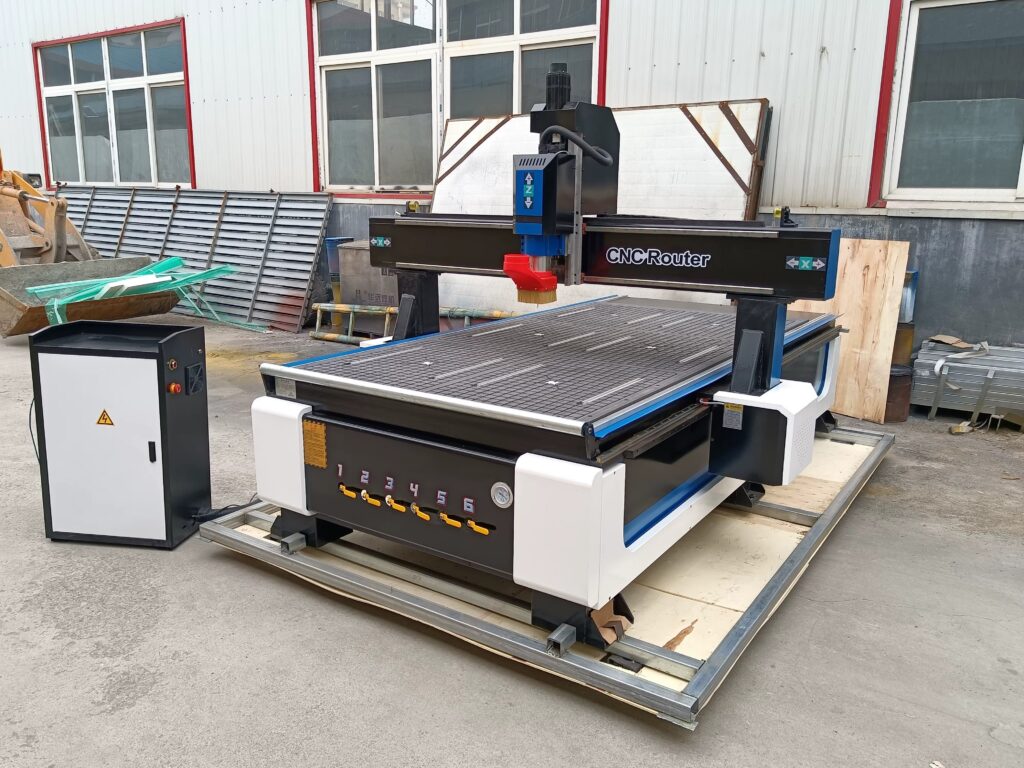

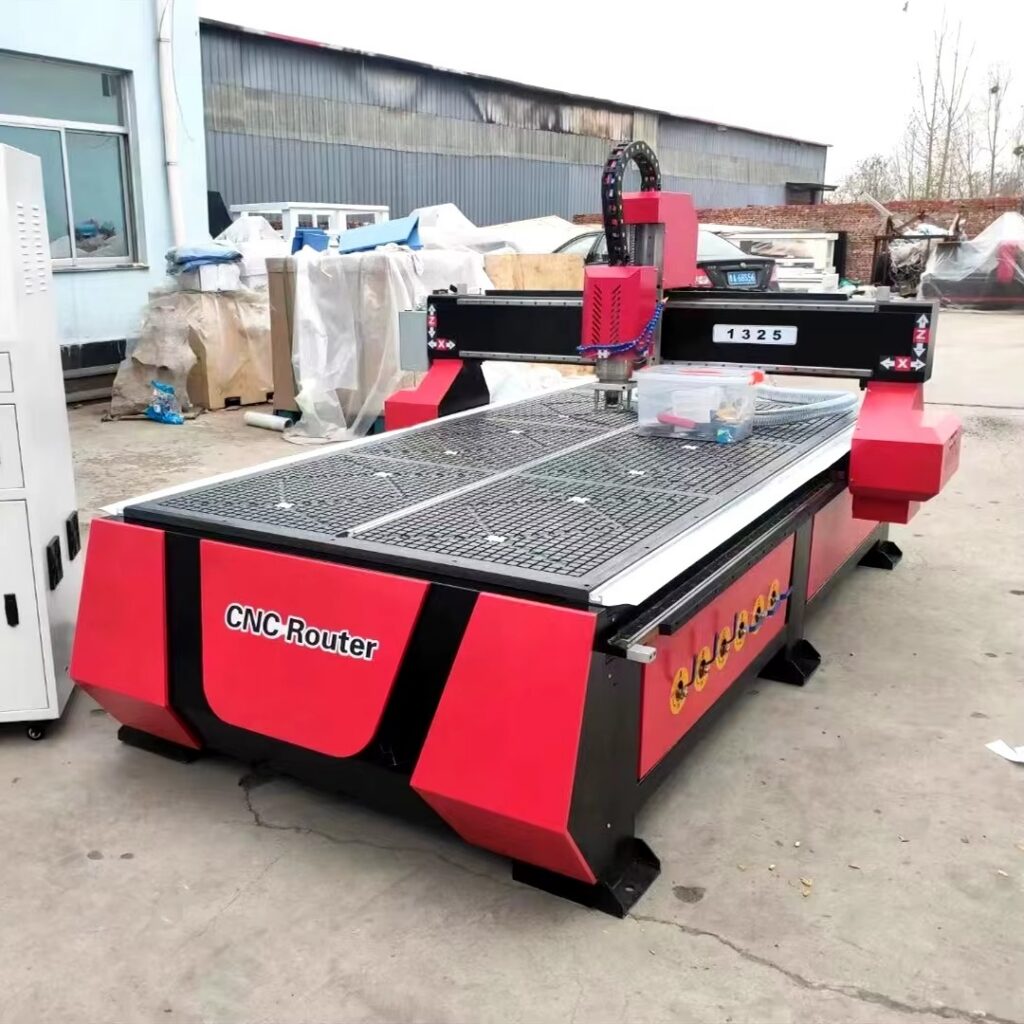

WOOD CNC ROUTER  Machine Picutures:

WOOD CNC ROUTER Tecnonical Parameters:

Model RT-1325B
X,Y Working Area 1300*2500mm
Z Working Area 200mm
Table Size 1600*2600mm
Resolution 0.01mm
Lathe Structure Seamless welded steel structure, better than cast iron one
X,Y Structure Rack and pinion, gear drive,
Taiwan Hiwin square guide rails
Z Structure Taiwan TBI ball screw,
Taiwan Hiwin square guide rails
Max. Idling Speed 40m/min
Spindle 2.2kw cooling spindle
Spindle Speed 0-24000r/min, variable speed
Working Voltage AC380V/50Hz
Motor and driver Stepper motor and driver
Working Mode Stepper
Command G code (HPGL,U00, mmg, plt)
Operating System DSP control system
Diameter of Cutter φ3.175-φ12.7
Cooling Mode water-cooling
Dust-collect Function Yes
Work Holding By suction or clamp
Tool Magazine 1 piece
Net Weight 1000KG

WOOD CNC ROUTER Machine Parts:

>>Applicable Material:Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.

>>Applicable Industry:Woodworking industry, stone industry, advertising industry, artwork or decoration industry, electronica industry, mold industry and music industry etc.

WOOD CNC ROUTER Packaging And Shipping:

WOOD CNC ROUTER Sample Picutures:
