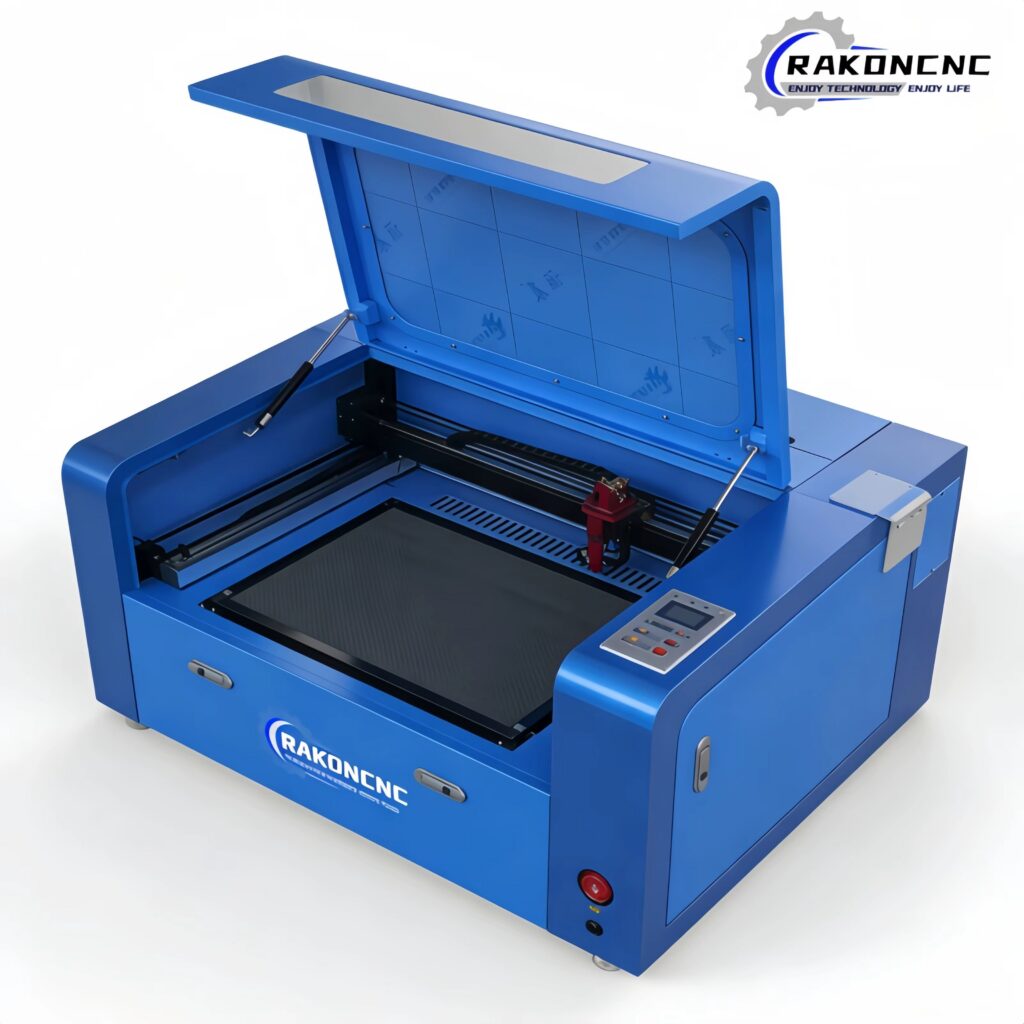

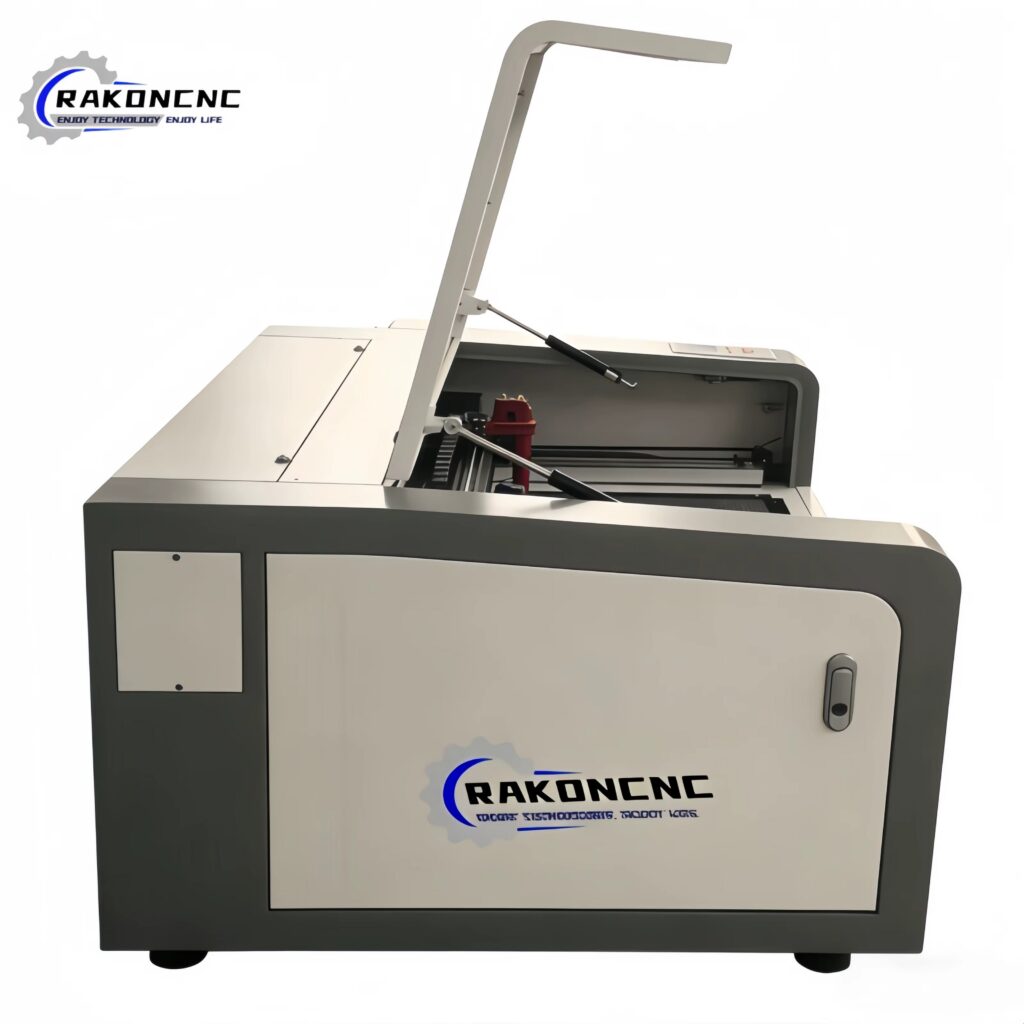

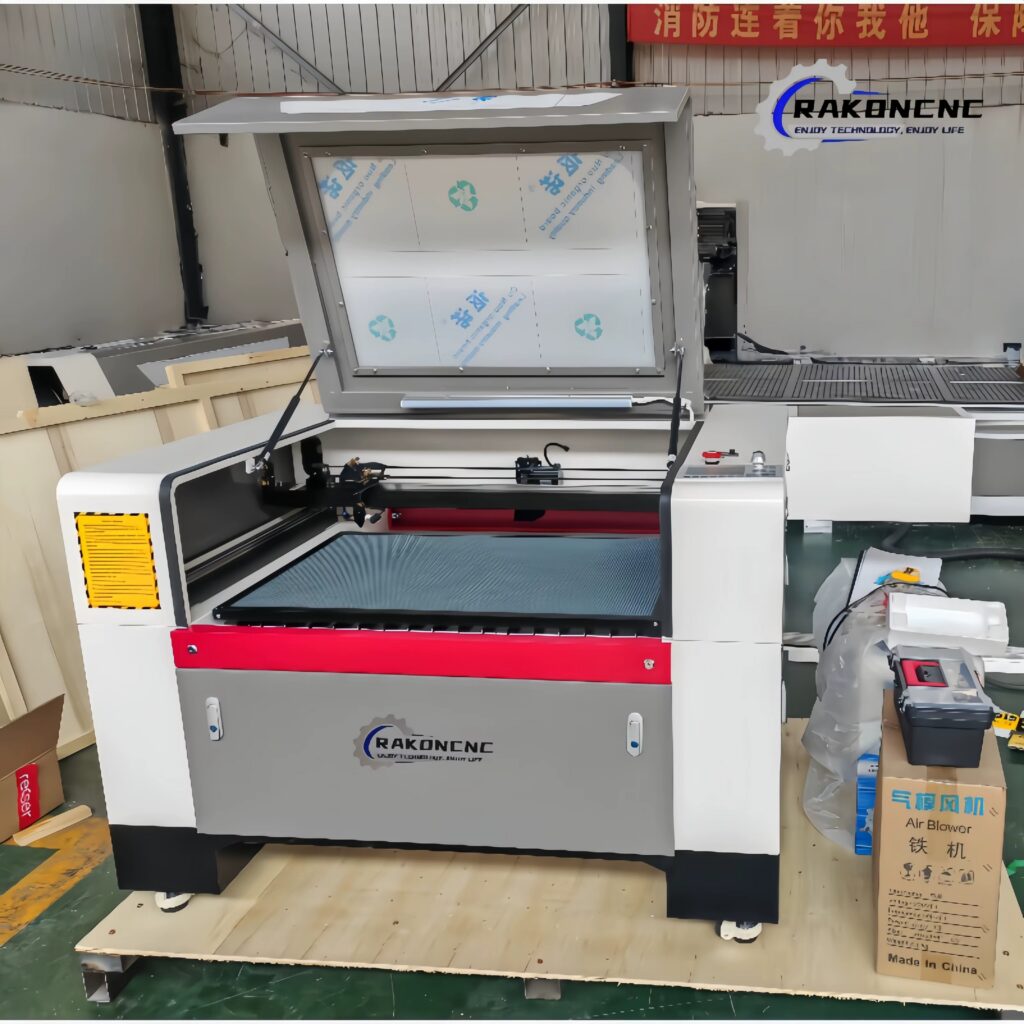

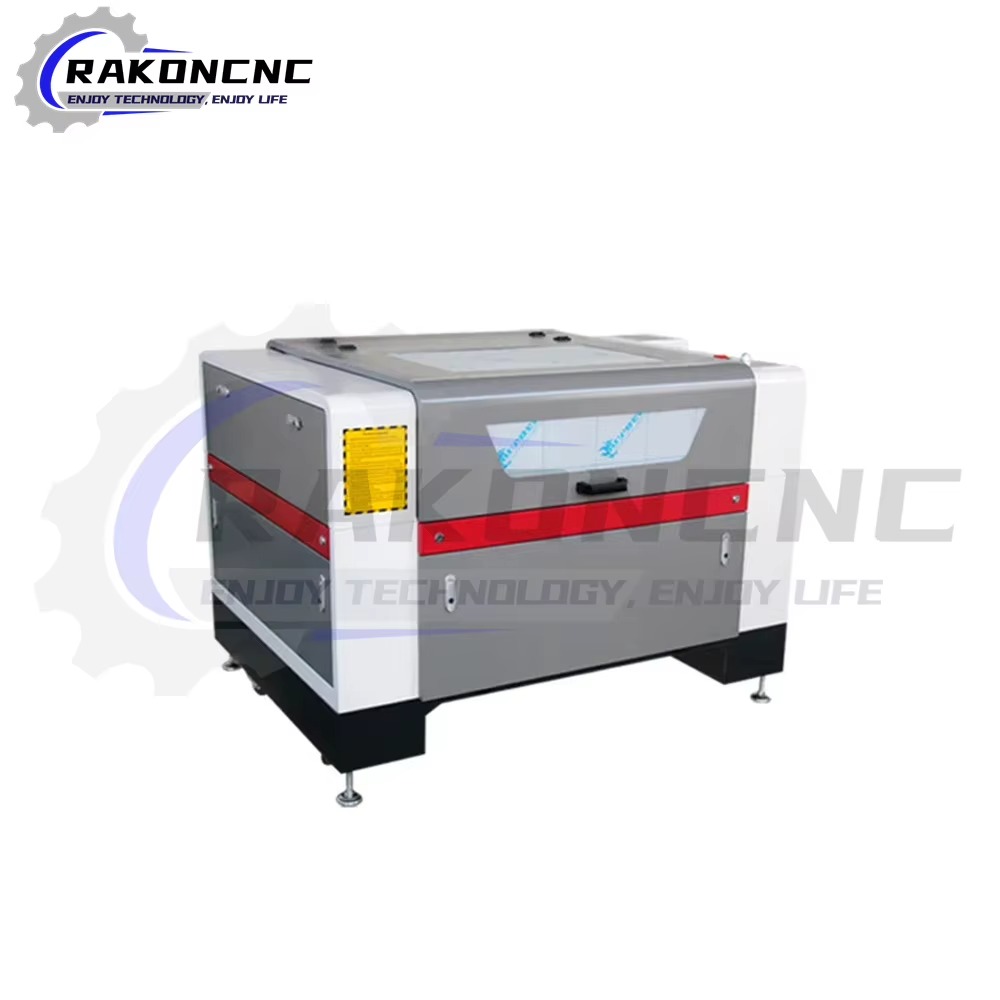

Machine Decoupe Laser CO2 6040 Atelier 6040 Mini Tabletop 50W 60W CO2 Laser Cutting and Engraving Machine for Wood Acrylic PVC Engraving Precision
Machine Decoupe Laser CO2 6040 Atelier 6040 Mini Tabletop 50W 60W CO2 Laser Cutting and Engraving Machine for Wood Acrylic PVC Engraving Precision
Machine Decoupe Laser CO2 6040 Atelier 6040 Mini Tabletop 50W 60W CO2 Laser Cutting and Engraving Machine for Wood Acrylic PVC Engraving Precision
Machine Decoupe Laser CO2 6040 Atelier 6040 Mini Tabletop 50W 60W CO2 Laser Cutting and Engraving Machine for Wood Acrylic PVC Engraving Precision
Machine Decoupe Laser CO2 6040 Atelier 6040 Mini Tabletop 50W 60W CO2 Laser Cutting and Engraving Machine for Wood Acrylic PVC Engraving Precision
Machine Decoupe Laser CO2 6040 Atelier 6040 Mini Tabletop 50W 60W CO2 Laser Cutting and Engraving Machine for Wood Acrylic PVC Engraving Precision
Machine Decoupe Laser CO2 6040 Atelier 6040 Mini Tabletop 50W 60W CO2 Laser Cutting and Engraving Machine for Wood Acrylic PVC Engraving Precision
1/7

Machine Decoupe Laser CO2 6040 Atelier 6040 Mini Tabletop 50W 60W CO2 Laser Cutting and Engraving Machine for Wood Acrylic PVC Engraving Precision

0 درهم

Features:

1.Cold-rolled steel welded machine bed, strong and running stable.

2.Aluminium blade table: to process hard materials like acrylic, wood and so onAnd metal materials such as carbon steel, stainless steel, galvanized sheet, etc

3.Fireproof window,more security.

4.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, service timeover 8500~10000 working hours.

  1. Laser good quality and stable output to prolong the laser tube service time.

6.Ruida or Leetro ControllerUSB interface, support online/offline working, English language system, adjustable cutting speed and power.

7.High accuracy stepper motors and drivers. Belt transmission.

8.Tiwan CSK/Hiwin Linear square guide rails, higher precision.

Machine details:

Technical Parameter:

 Model RCJ6040H/ RCJ1390H
Working area 600*400mm/1300*900mm
Laser power 150W/180W/ 280W/ 300W
Cutting speed 0-50mm/s
Repositioning accuracy ±0.05mm
Working voltage AC110-220v ±10% 50HZ-60HZ
Consuming power less than 1000 watt
Graphic format supported BMP, PLT, DST,  DXF, AI,CDR
Software supported CorelDraw, PhotoShop, AutoCAD
Minimum letter size English 1mm x1mm Chinese 2mm x 2mm
Driving system Stepper motor;Panasonic/ Yaskawa servo motors options
laser tube cooling type CW5200/ CW6000 industry chiller

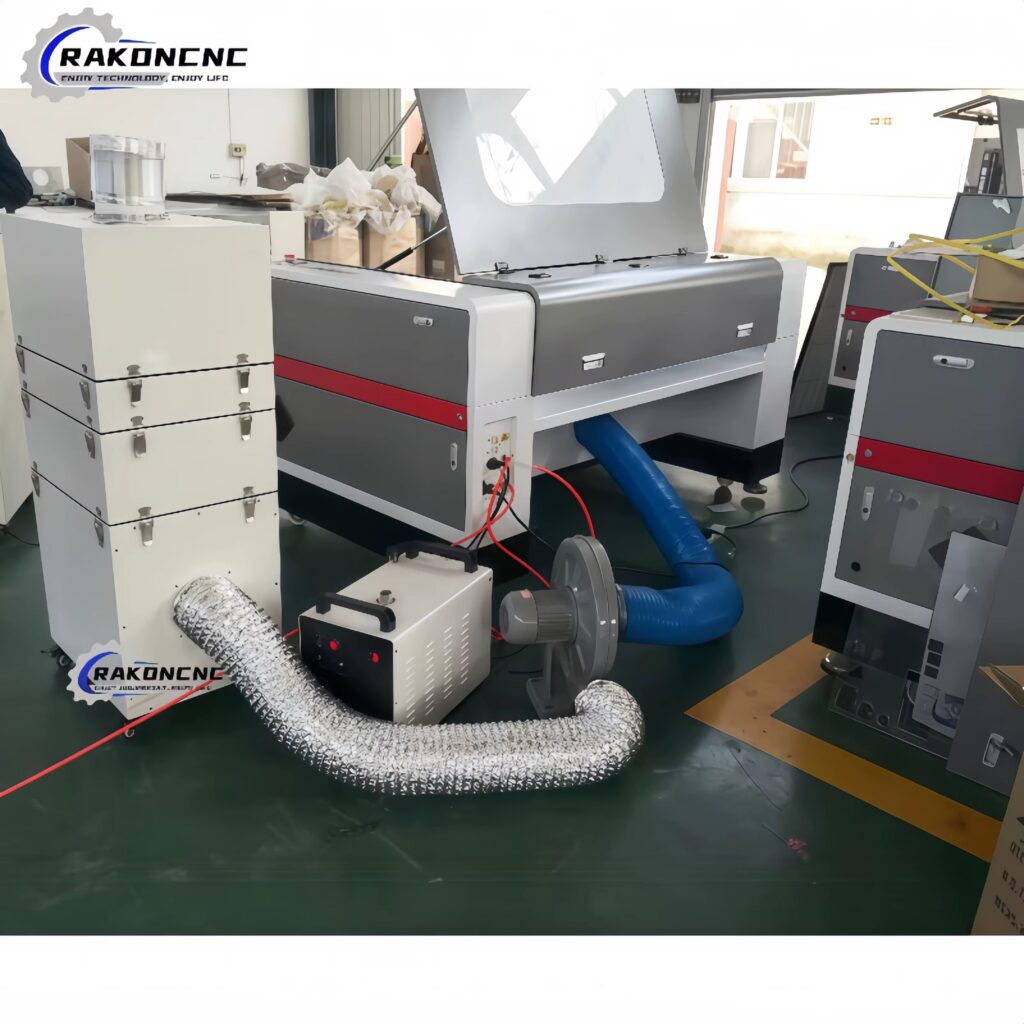

other auxiliary equipment Exhaust fans and air exhaust pipe
Working temperature 0-45°c
Operating humidity 8%-95% (without condensed water)
Laser control system DSP control  system Ruida 6332M
Laser tube type Sealed CO2 glass laser tube

Production Application

Applicable Materials:

Nonmetal materials, like acrylic, wood, MDF, die board, and so on.

Metal materials, such as stainless steel, carbon steel, etc.

Applicable Industry:

Mainly used in advertising, decoration industry( stainless metal and carbon steel related

products), sheet metal industry (carbon steel), packing industry(die board) and other

related industry.
