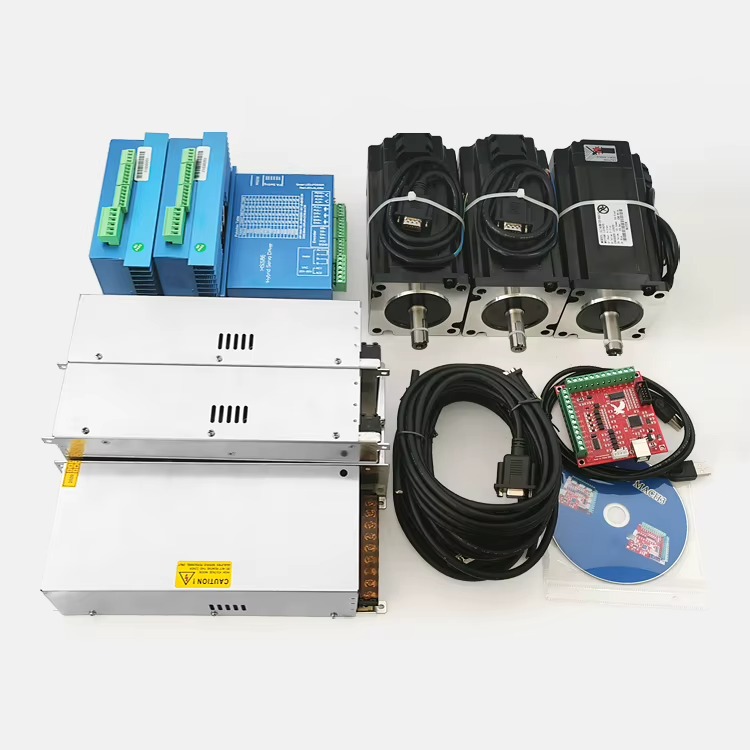

Moteur pas à pas Nema 34 4.5N.m 8N.m 12N.m Easy Servo Closed Loop Kit Cnc 3 Axis Nema 34 Stepper Motor With Encoder and Driver
Moteur pas à pas Nema 34 4.5N.m 8N.m 12N.m Easy Servo Closed Loop Kit Cnc 3 Axis Nema 34 Stepper Motor With Encoder and Driver
Moteur pas à pas Nema 34 4.5N.m 8N.m 12N.m Easy Servo Closed Loop Kit Cnc 3 Axis Nema 34 Stepper Motor With Encoder and Driver
Moteur pas à pas Nema 34 4.5N.m 8N.m 12N.m Easy Servo Closed Loop Kit Cnc 3 Axis Nema 34 Stepper Motor With Encoder and Driver
1/4

Moteur pas à pas Nema 34 4.5N.m 8N.m 12N.m Easy Servo Closed Loop Kit Cnc 3 Axis Nema 34 Stepper Motor With Encoder and Driver

0 درهم

Description

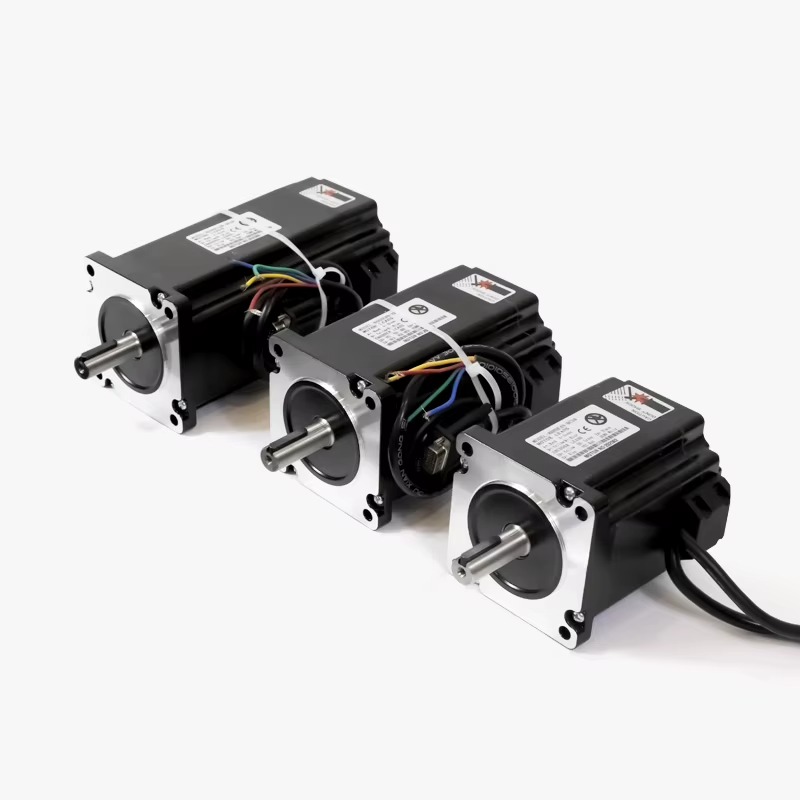

4.5N.m 8N.m 12N.m nema 34 closed loop stepper motor for CNC machines, 3D printers, Robotics, Cutting machines, Marking machines
Temperature Rise
80℃max
Ambient Temperature
-20℃~+50℃
Insulation Resistance
100 MΩ Min. ,500VDC
Dielectric Strength
500VAC for 1minute
Shaft Radial Play
0.02Max. (450g-load)
Shaft Axial Play
0.08Max. (450g-load)
Max. radial force
220N (20mm from the flange)
Max. axial force
60N
Model No.
Step Angle
Current
Holding Torque
No. of Leads
Encoder
Motor Size
Weight
（°）
（A）
（N.m）
No.
（PPR）
（mm）
（Kg）
86HSE4N
1.8
6.0
4.5
4
1000
86x86x82
2.65
86HSE8N
1.8
6.0
8.5
4
1000
86x86x118
4.0
86HSE12N
1.8
6.0
12.5
4
1000
86x86x156
5.65

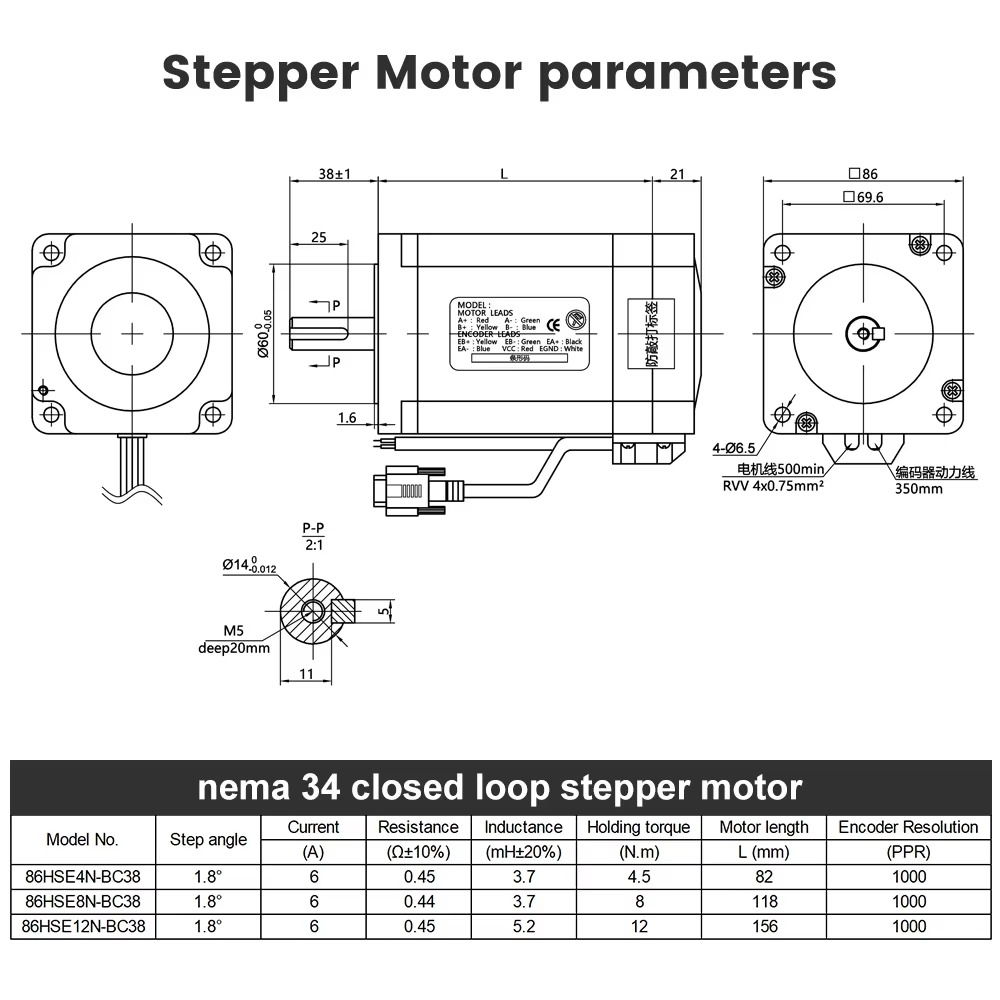

Motor Dimension (mm)
HBS86H Stepper Motor Driver:
Input voltage
AC20~70V or DC30~110V
Peak current
Peak 8.0A（current change according to load）
Pulse frequency
0~200KHz
MicroSteps
16 kinds microsteps choice, highest 51200microsteps/rev
Using environment
0~50℃, avoid dust, oil,gas
Storage environment
-20℃~65℃，avoid direct sunlight
Motor Driver Features

1. Stepper motor closed loop system, never lose step. 2. Improve motor output torque and working speed. 3. Automatic current adjustment based on load, lower temperature rising. 4. Suitable for all mechanical load conditions (include low rigidity belt pulley and wheel), no need to adjust gain parameter. 5. Motor work smoothly and low vibration, high dynamic performance at acceleration and deceleration. 6. No vibration from high speed to zero speed 7. Pulses response frequency can reach 200KHZ 8. 16 kinds microsteps choice, highest 51200 microsteps/rev. 9. Voltage range: AC20~70V or DC30V~110V 10. Over-current, over-voltage and position ultra difference protection function
