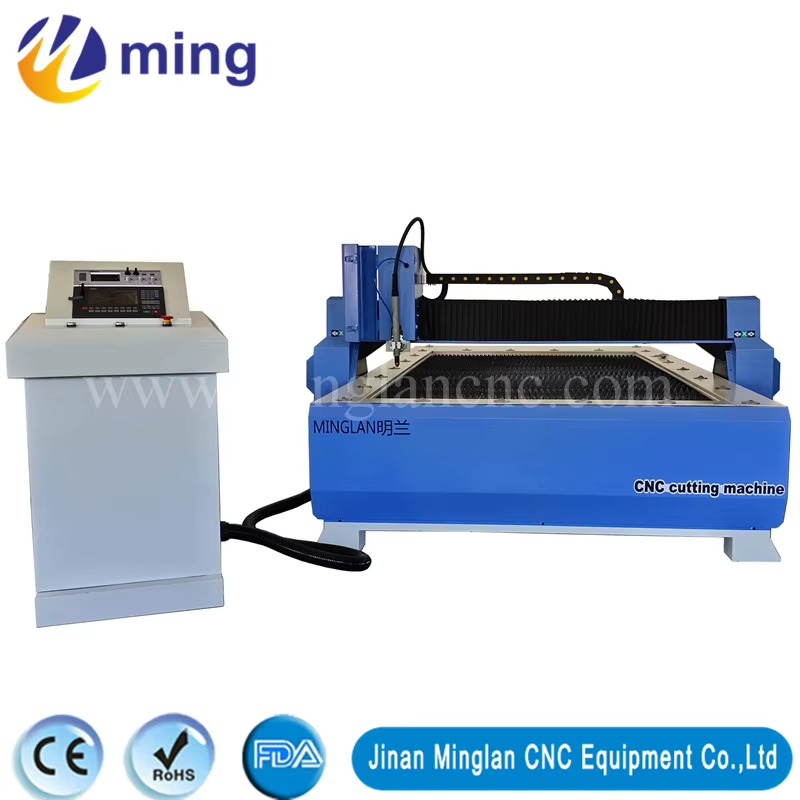

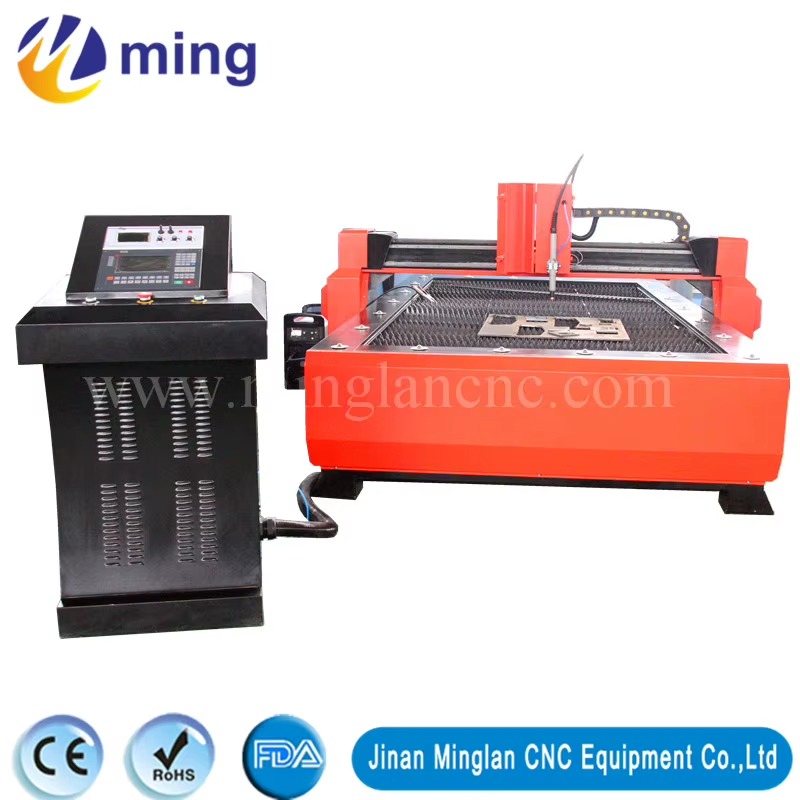

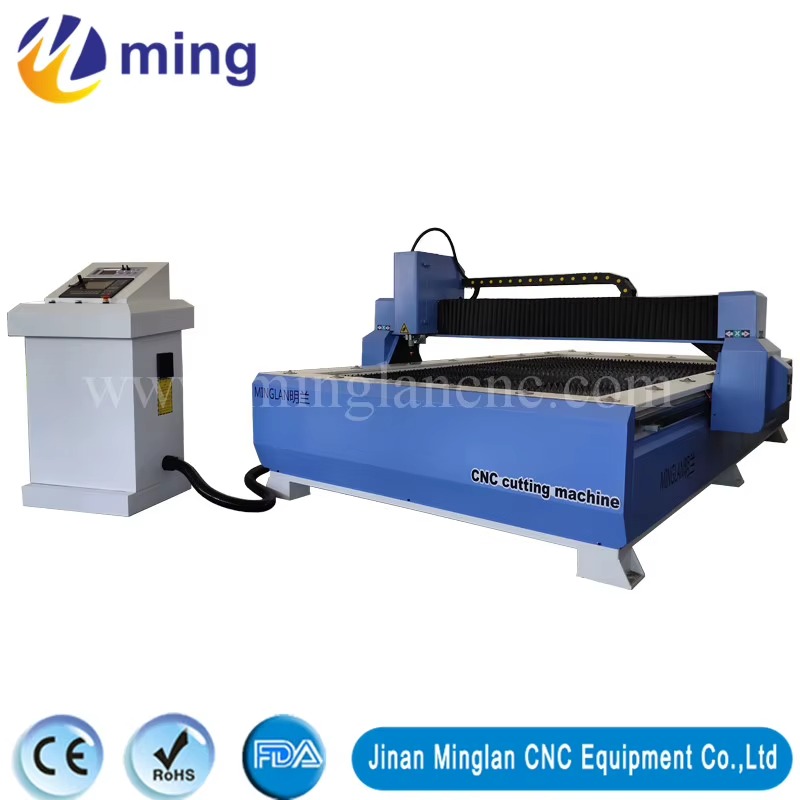

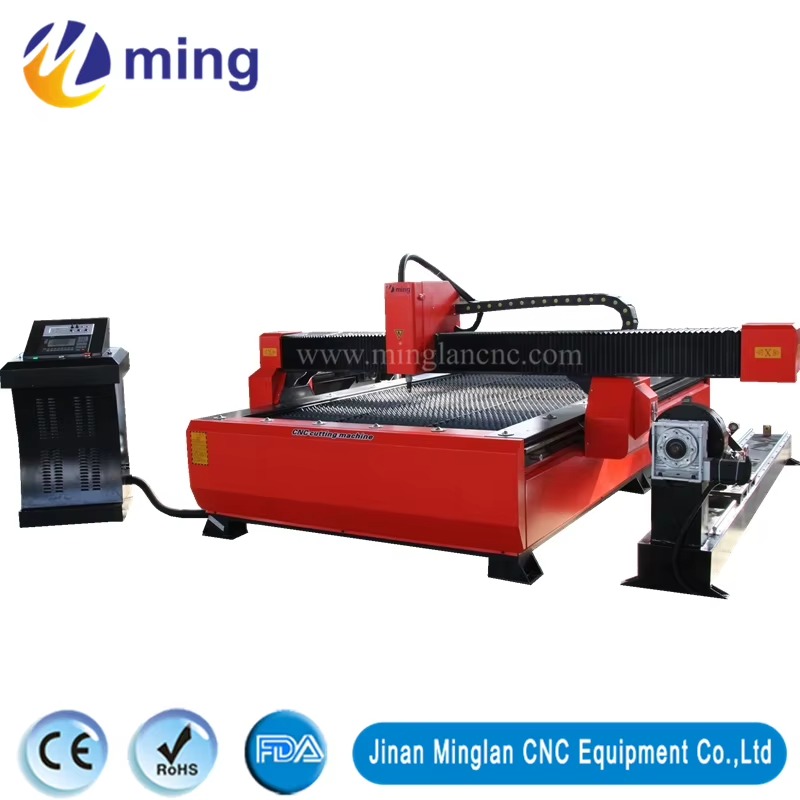

Table de Decoupe Plasma CNC 2040 Grand Format 1325 1530 1540 2040 CNC-Plasma-Cutting-Machine With Rotary For 4/6/8/10/12/14/16mm Metal

0 درهم

Application

Plasma cutting machine Cutting materials—
All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed.
Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates,
and so on like the sheet metal.

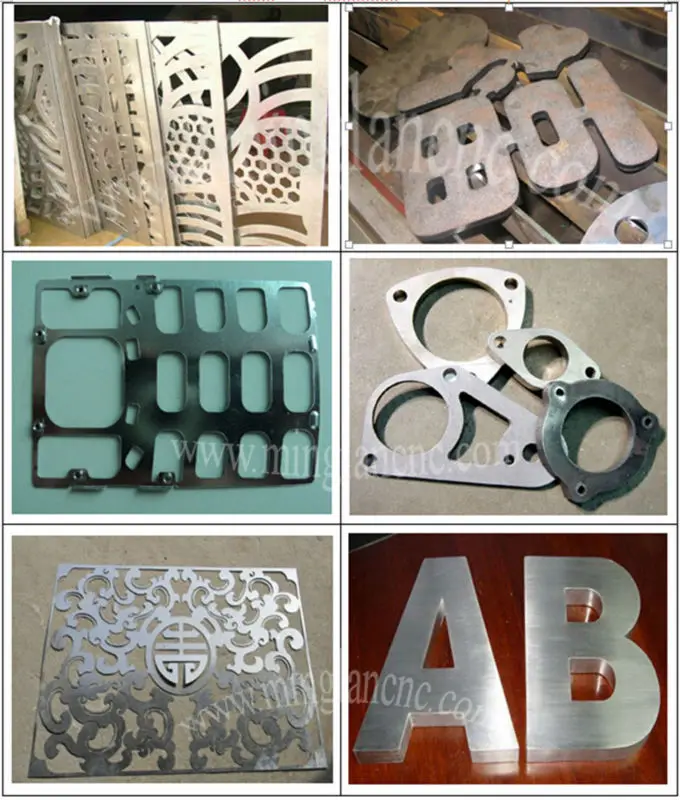

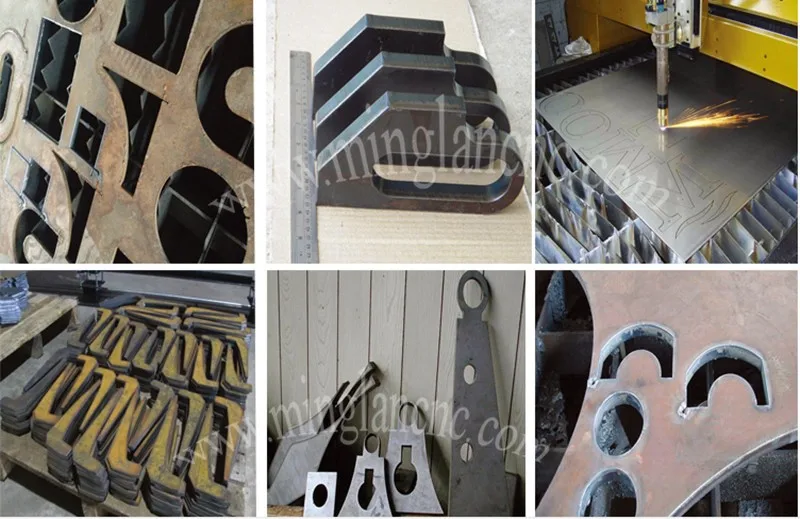

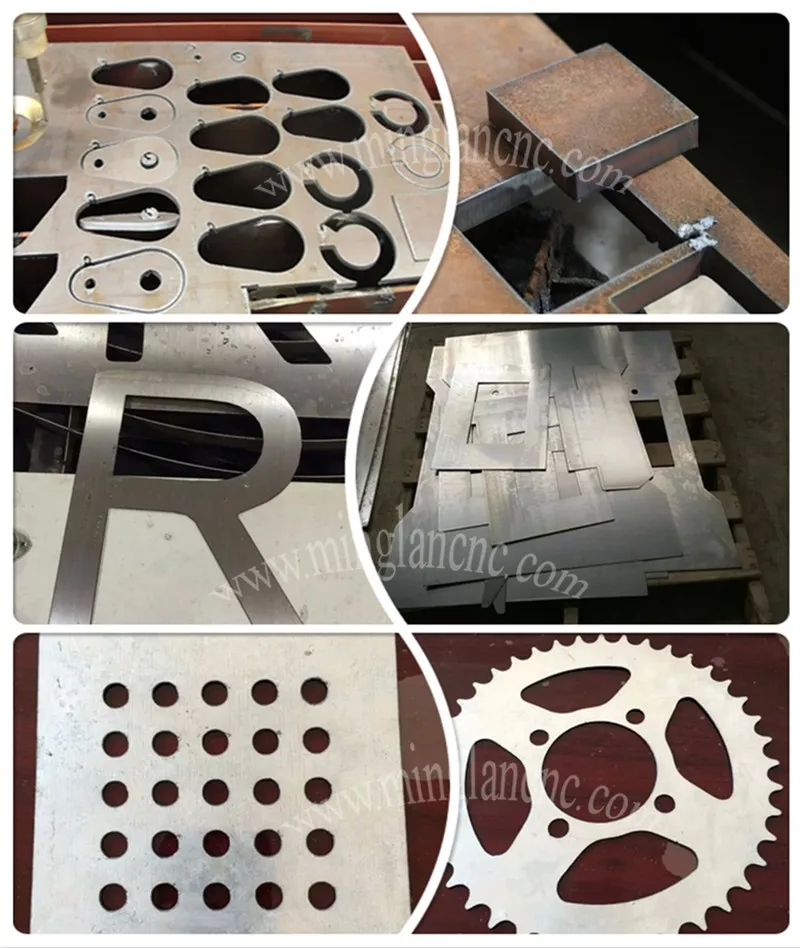

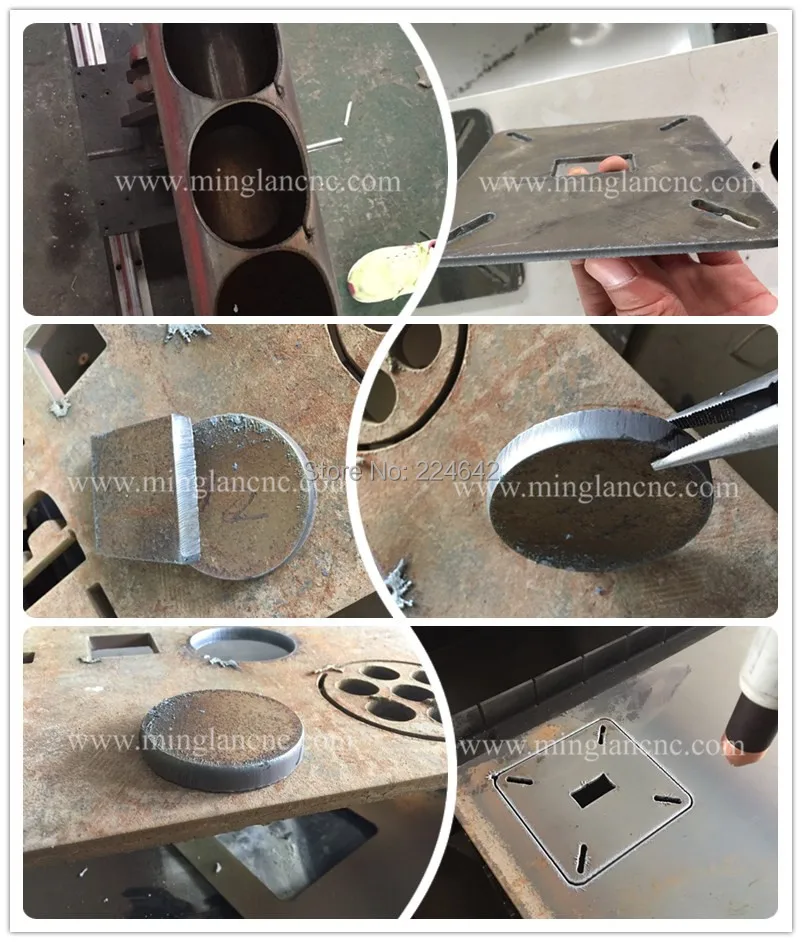

Samples photo as follow

Technical parameter:

Model: ML-1325
Working Area:1300x2500mm
Cutting speed: 8-15m/min
Repeat positioning accuracy: ±0.05mm
Process precision: ±0.35mm
Motor: step motor
Cutting thickness: 0-30mm (depends on power supply)
Power: 8.5KW
Transmission model: Gear rack drive
Input voltage: 3 phase 380V
Power supply
H ypertherm power supply/ Huayuan Power: supply
Plasma current： LGK-63A.100A,160A,200A
USA welder –65A,85A,105A,200A

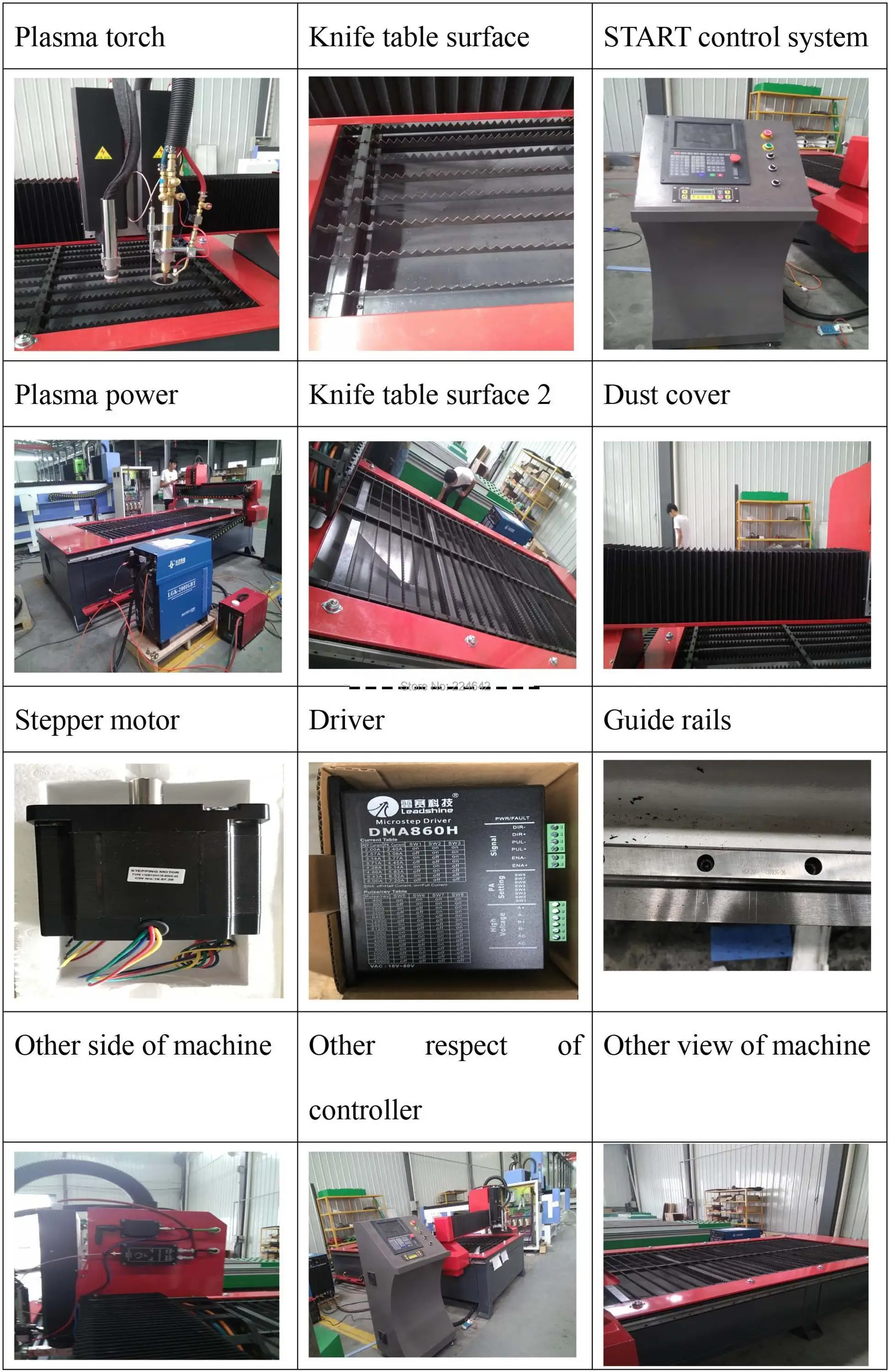

Cutting system： Beijing Start cutting system (English)

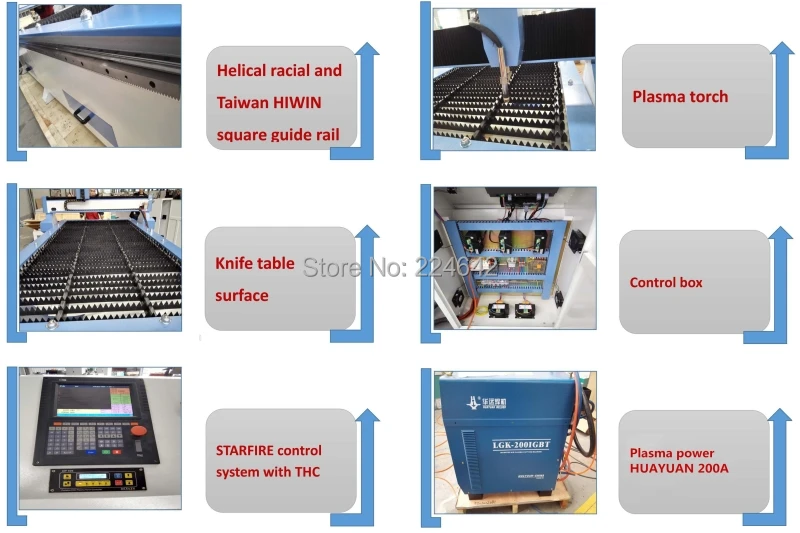

Transmission system： X,Y Taiwan Hiwin high-precision, zero clearance increased linear guide+ rack
Support software：drawing software–CAD
nesting software–Australia fastcam
ctting path file–artcam, type3 etc
Guide way：Imported square rail
Table-board：Steel blade saw tooth mesa
Steel blade saw tooth mesa：Ray plug drives 860
(Sino-us joint venture large drives)
Working mode： Non-contact arc

Different power machine can cut different thickness metal, details as follow:

1. Import USA welder,
45A cut less than 8mm carbon steel, Stainless steel 5mm；
65A cut less than 12mm carbon steel, Stainless steel 8mm；
85A cut less than 16mm carbon steel, Stainless steel 12mm；
105A cut less than 20mm carbon steel, Stainless steel less than 14mm；
125A, cut less than 25mm carbon steel, Stainless steel less than 16mm,
200A cut less than 32mm carbon steel, Stainless steel less than 22mm,

2. China HUAYUAN brand welder,
63A or HUARONG 63A welder, cut less than 5mm metal,(Machine with DSP control system only can cut less than 2mm metal;)
HUAYUAN 100A cut less than 12mm carbon steel, 6mm stainless steel,
HUAYUAN 120A cut less than 18mm carbon steel, 10mm stainless steel.
HUAYUAN 160A cut less than 25mm metal, less than 15mm stainless steel.
HUAYUAN 200A cut less than 30mm carbon steel and aluminum, stainless steel less than 20mm,
HUAYUAN 300A cut less than 35mm metal.

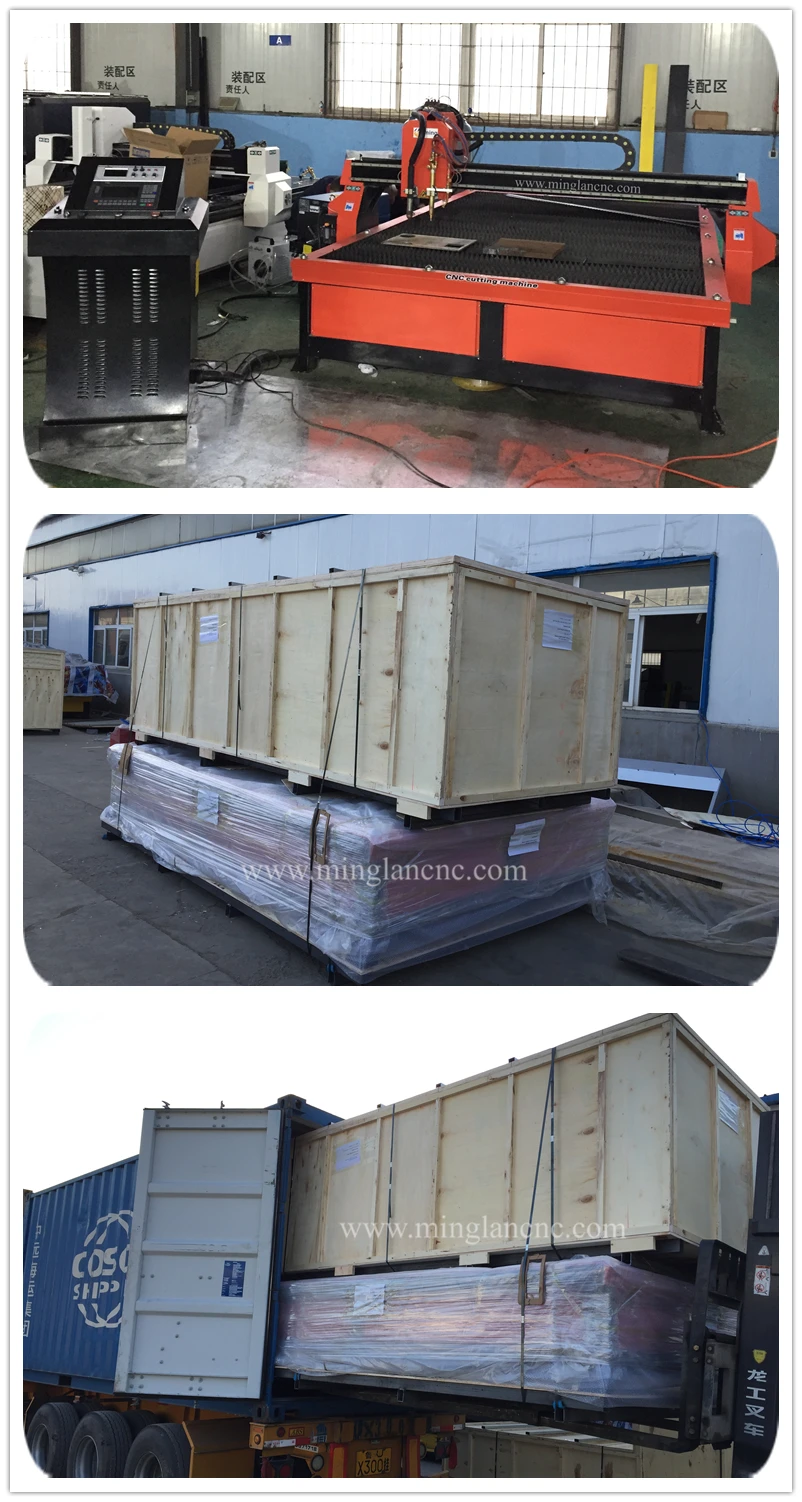

Package:
