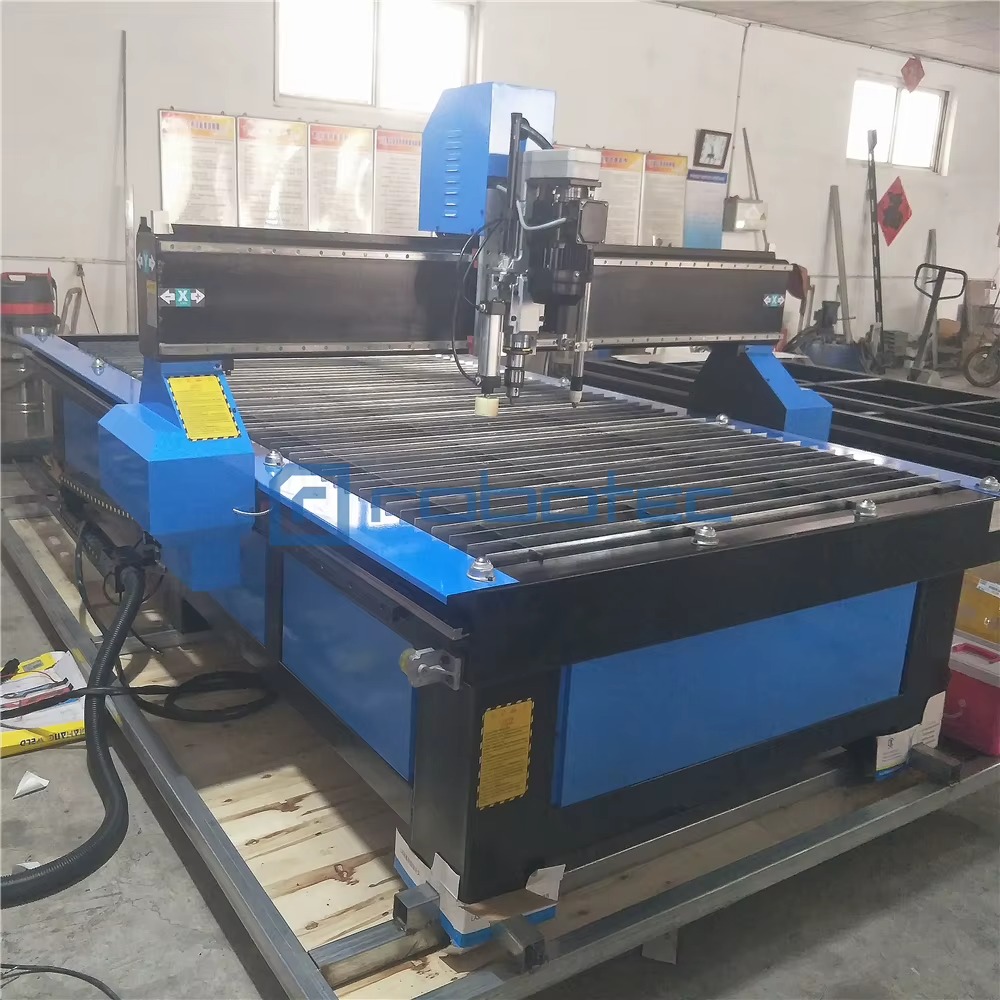

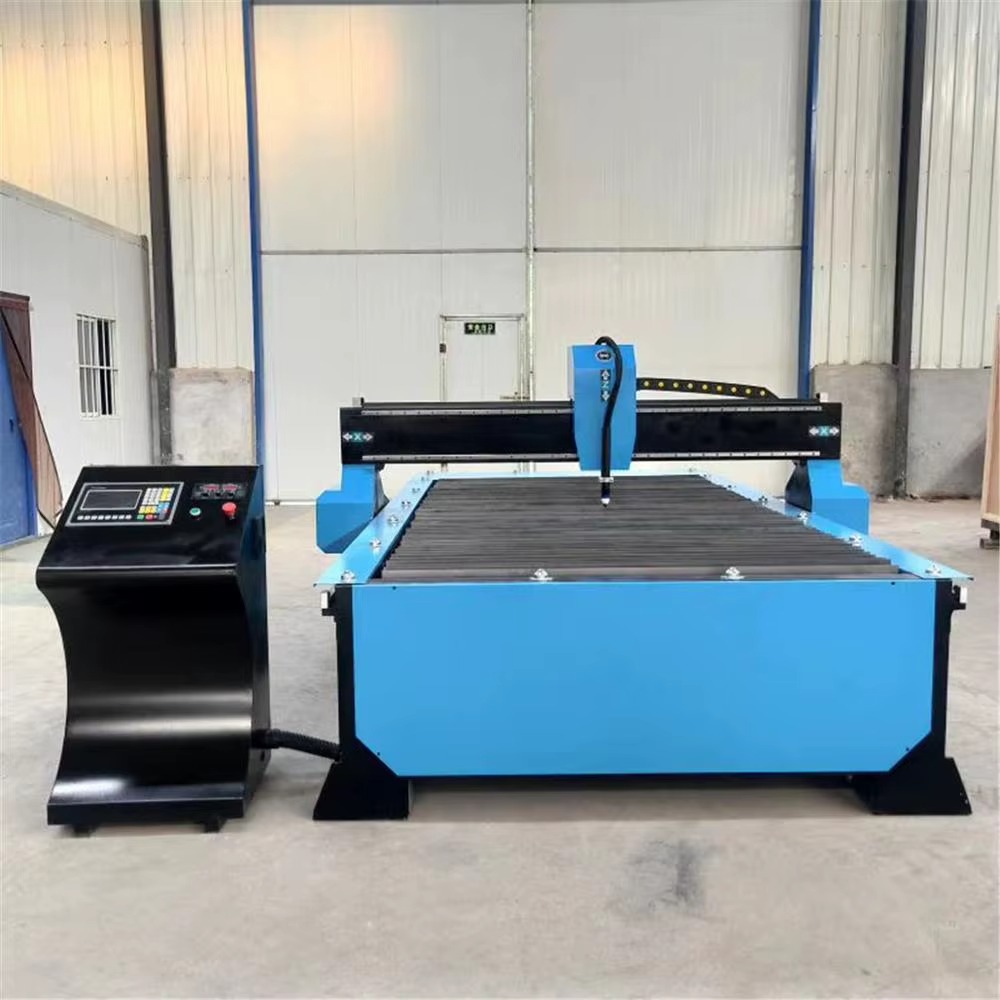

Robotec Water Table Cnc Plasma Cutting Machine Plasma Cutter 1325 1530 Cnc Metal Cutter With Start Fire Controller

Robotec Water Table Cnc Plasma Cutting Machine Plasma Cutter 1325 1530 Cnc Metal Cutter With Start Fire Controller

0 درهم

Description

Robotec Water Table Cnc Plasma Cutting Machine Plasma Cutter 1325 1530 Cnc Metal Cutter With Start Fire Controller

cnc plasma cutting machine

1. CNC plasma cutting machine adopts light-weight structural design, the structure has good rigidity, light weight and small motion inertia.

2.Gantry-type structure. Y axis adopts synchronous double-motor and driver, and X,Y,Z axises adopt linear guideways, stable transmission and high operational precision.

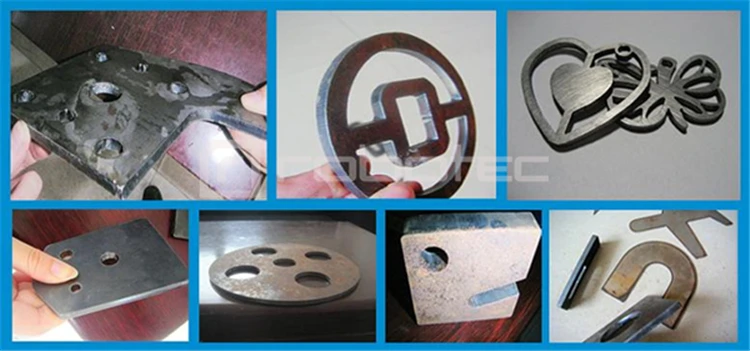

3.Mainly cut Three-dimensional LED advertising word, metal plates with groove characters and baseboards, and cutting accuracy lives up to excellent index

4.Small cutting holes, tidiness and no-residue phenomenon, avoids shaping process at second time.

5.Fast cutting speed, high precision and low cost.CNC system with high configuration, automatic arc strike and stable performance, with above 99% arc strike success rate.

6.Support for standard G code path files which are generated by softwares such as Artcut, Artcam, Type3. DXF format files generated by softwares such as AUTOCAD can also be read through software transform. The controlling system adopts U disk to exchange processing files, operation is convenient and speedy.

7.Plasma power source and burning torch are equipped with famous domestic brands. and they are manufactured by factories with multi-termed national patent technology

cnc plasma cutting machine Specification

DESCRIPTION	PARAMETER
XYZ working area	1300*2500mm
Rotary device	200mm diameter
Plasma generator	63A China Huayuan brand(0.3-8mm cutting thickness)
optional	100A,0.3-18mm cutting thickness
optional	160A,0.3-25mm cutting thickness
optional	200A,0.3-35mm cutting thickness
Drive motor	Stepper 86 BYG&Leashine drive
Operating system	START original with THC function
Table surface	Banner steel table
Frame	Seamless steel pipe welding
XY structure	Taiwan TBI round rail&rack pinion
Z structure	Torch height controller
Max. Rapid travel rate	25m/min
Max. Working speed	16m/min
Working voltage	3 phase 380V
Command	G code
Machine resolution	<0.01mm
Compatible software	Type3, Artcam,CNCCUT
Machine size	190033001700mm
Packaging size	210034001750mm
Net weight	1300kg
Gross weight	1400kg
Standard accessories	This is a complete cnc plasma cutting machine, contain all the accessories you need to run the machine.

cnc plasma cutting machine Warranty

12 months for machine. Also we supply lifetime service online 24 hours a day MSN, Skype, Yahoo, Gmail and so on. You can also contact us by email, and we will reply in 24 hours, or by phone if urgently.
